Max. ACSR Size (mm²): |
240,500,720,1440,2500 |
Max. Compression Force: |
25T-300T |
Use: |
Compressor |
Weight: |
6~126kgs |
Application: |
Crimping ACSR |
Max. Hydraulic Pressure (MPa): |
70,94 |
Die Set: |
16-400mm2 |
Max. Crimping Force: |
300tons |
This hydraulic pump is capable of generating high pressure and has a double stage pump output. It is equipped with a Honda engine which provides power for various construction machinery such as cutting tools, hydraulic compressors, and punching machines. This pump is specifically designed for use in remote areas where electrical power is not available, making it highly suitable for the railway, rescue, construction, and other related industries.
If you're in search of a high pressure hydraulic pump that is efficient and portable, our gasoline-driven hydraulic pump station mounted on a hand cart might be the right fit for you. This pump station is perfect for those who are always on the go as it can be easily transported.
The Gasoline Engine Hydraulic Pump Station is among our latest models. Experts have developed the pump station to utilize an engine that is lightweight, weighing less than 10kg. The station operates at an impressive speed, about three times faster than most traditional pumps. The oil tank, made of a new aluminum alloy, dissipates heat much faster, increasing the pump's efficiency.

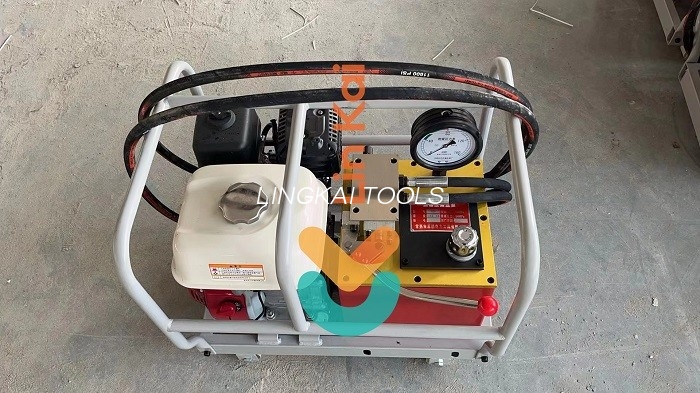

Gasoline Engine Hydraulic Pump Station
| Item No. | Description | Hydraulic Pressure (MPa) |
Max Pressure (Mpa) |
Oil Flow (L/min) | Power (HP) | Weight (kg) |
| 16146 | Gasoline motor driven hydraulic pump station mounted on hand cart | 80 |
94 |
11.02-2.05 | 5.0 | 55 |
Application: It should be noted that the pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine. A normal hydraulic hose is three meters long. Extended Hose is not required.
Conductor Jointing Machine Motorized
| Item No. | Model | Max. Compression Force (KN) | Max. Hydraulic Pressure (MPa) | Max. ACSR Size (mm²) | Stroke (mm) | Weight (kg) |
| 16101 | QY-25 | 250 | 70 | 240 | 22 | 6 |
| 16102 | QY-45 | 450 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106A | QY-300 | 3000 | 94 | 2500 | 35 | 126 |
Hexagon Compression Die sets
| Item No. | Matching Compressor | Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
| 16121 | QY-25 | Copper or Aluminum Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
The High-Pressure Motorized Hydraulic Pump Station with an output of 80 MPa is designed to serve as the main power source for hydraulic compressors or other similar equipment. This pump station is a reliable and efficient way to supply hydraulic pressure through the most demanding applications. Utilizing a HONDA GX160 gasoline engine as its power source, it can provide a consistent and steady power output for various hydraulic tools and equipment.
The standard length of the hydraulic hose included with the pump station is 3 meters, providing sufficient length for most common applications. Additionally, longer hose options are available, allowing for a broader range of applications and further increasing the versatility of the pump station. Whether for industrial, automotive, or other applications that require high-pressure hydraulics, this pump station delivers reliable performance to meet the most demanding requirements.
The Hydraulic Crimping Tool product comes with a comprehensive technical support and services package to ensure optimal performance and minimal downtime. Our team of experienced technicians is available to provide assistance with installation, operation, and maintenance of the tool. Additionally, we offer training programs to ensure that users are able to operate the tool safely and efficiently. Our technical support services also include troubleshooting and repair services, as well as replacement parts and accessories. We are committed to providing our customers with the highest level of support to ensure their satisfaction with our product.
Product Packaging:
Shipping:
Q: What is the brand name of this crimping tool?
A: The brand name of this crimping tool is Lingkai.
Q: What is the model number of this crimping tool?
A: The model number of this crimping tool is YBQA-80-03.
Q: Where is this crimping tool manufactured?
A: This crimping tool is manufactured in China.
Q: What certifications does this crimping tool have?
A: This crimping tool is certified with ISO and CE.
Q: What is the minimum order quantity for this crimping tool?
A: The minimum order quantity for this crimping tool is 1 set.
Q: What is the price of this crimping tool?
A: Please contact us to get the latest price of this crimping tool.
Q: What are the packaging details for this crimping tool?
A: The packaging details for this crimping tool are wooden case.
Q: What is the delivery time for this crimping tool?
A: The delivery time for this crimping tool is 3-7 working days.
Q: What are the payment terms for this crimping tool?
A: The payment terms for this crimping tool are T/T.
Q: What is the supply ability for this crimping tool?
A: The supply ability for this crimping tool is 1000 sets per month.
