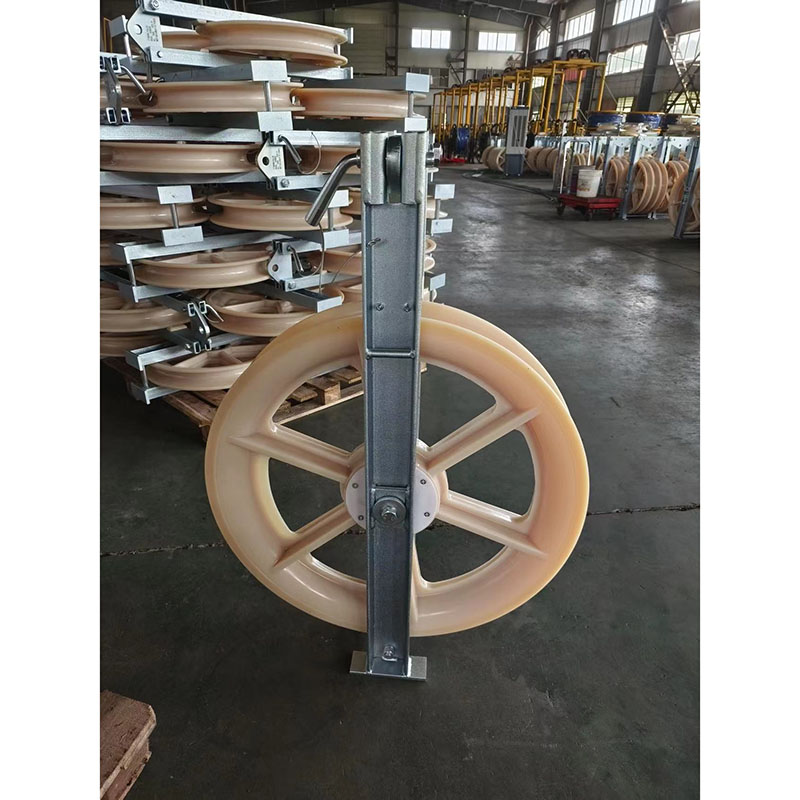

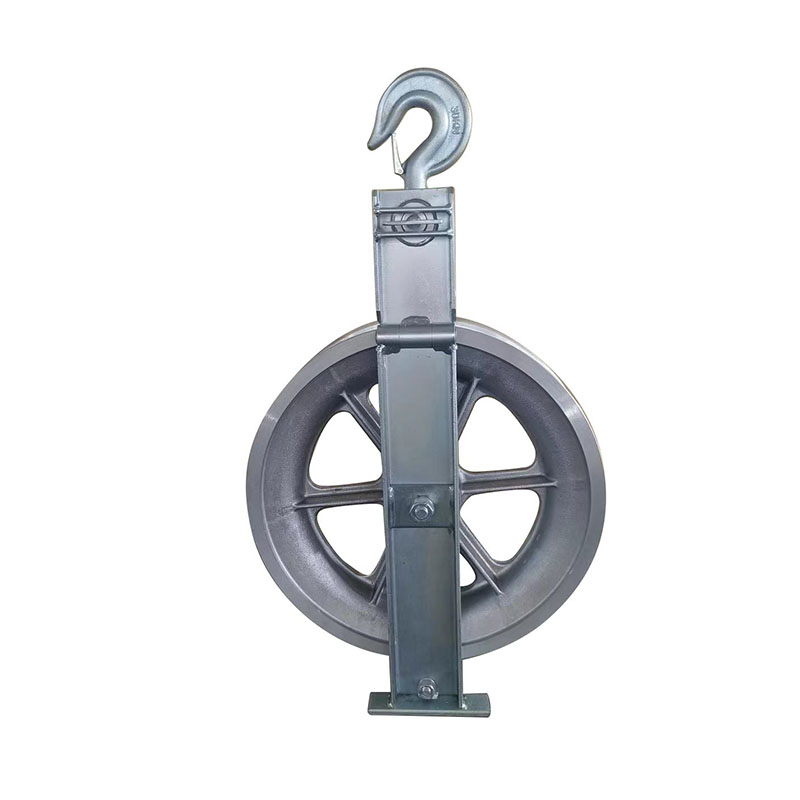

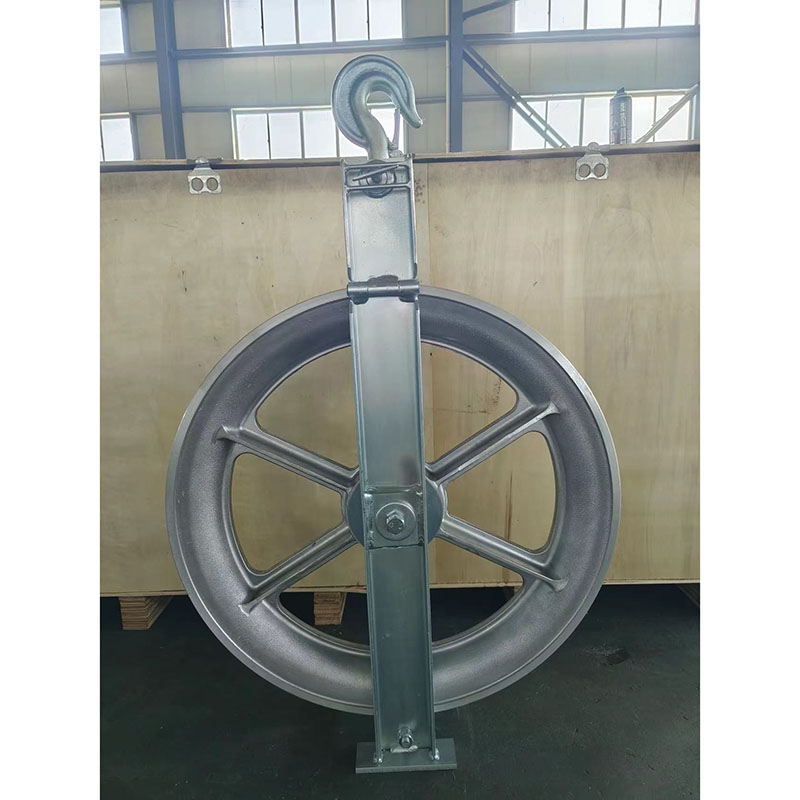

Aerial conductor stringing blocks Made in China: the single shaving stringing block with nylon sheave and aluminum alloy, with a maximum ACSR of 500,630,720. This is mostly an introduction for the 500 LGJ ACSR. This personalized aerial conductor stringing block head is made to your specifications and can be either plate or hook.
Technically speaking, plate type and swivel type heads are preferable for stringing big diameter conductors, thus use Durable aerial conductor stringing blocks instead. It is more steady. Additionally, bigger wheels might be more advantageous for the site for the same conductor size since they can support a higher rated weight and run quicker, which can shorten project completion times.
|
Item Number |
Model |
Suitable Conductor |
Rated Load (kg) |
Weight (kg) |
Remark |
|
10171 |
SHD-120×30 |
LGJ25~70 |
5 |
1.5 |
Aluminum sheave |
|
10172 |
SHD-160×40 |
LGJ95~120 |
10 |
2.5 |
|
|
10173 |
SHD-200×40 |
LGJ150~240 |
15 |
4 |
|
|
10174 |
SHD-200×60 |
LGJ150~240 |
15 |
4.6 |
|
|
10176 |
SHD-250×60 |
LGJ300~400 |
20 |
6 |
|
|
10178 |
SHD-320×60 |
LGJ300~400 |
20 |
9.5 |
|
|
10179 |
SHD-400×80 |
LGJ400~500 |
20 |
15 |
|
|
10191 |
SHDN-120×30 |
LGJ25~70 |
5 |
1.5 |
Nylon sheave |
|
10192 |
SHDN-160×40 |
LGJ95~120 |
10 |
2.5 |
|
|
10193 |
SHDN-200×40 |
LGJ150~240 |
15 |
3.6 |
|
|
10194 |
SHDN-200×60 |
LGJ150~240 |
15 |
4 |
|
|
10196 |
SHDN-250×60 |
LGJ300~400 |
20 |
4.5 |
|
|
10197 |
SHDN-270×60 |
LGJ300~400 |
20 |
5.6 |
|
|
10198 |
SHDN-320×60 |
LGJ300~400 |
20 |
6.7 |
|
|
10199 |
SHDN-400×80 |
LGJ400~500 |
20 |
13 |
