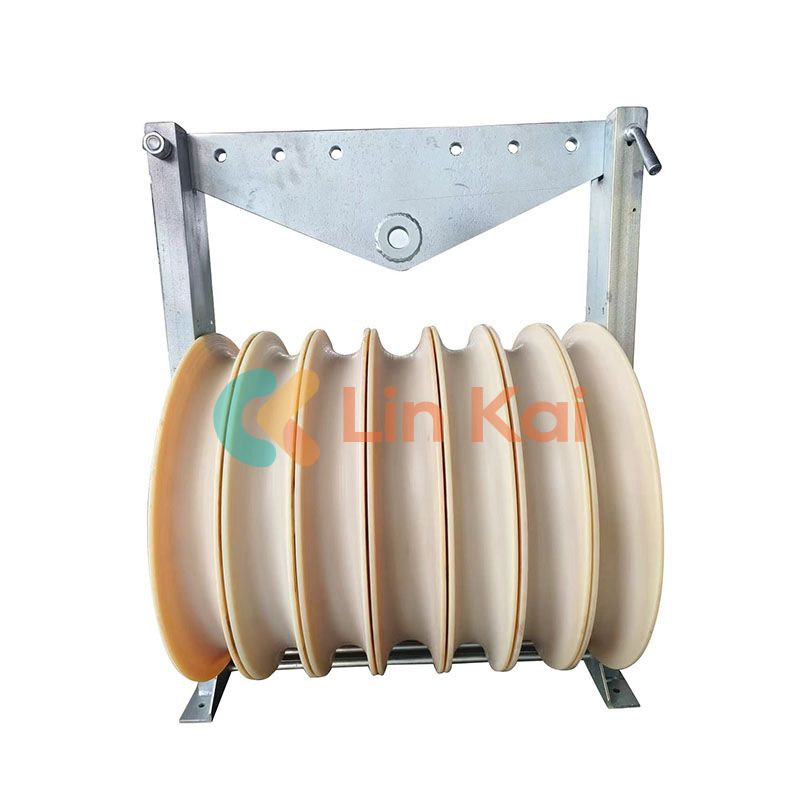

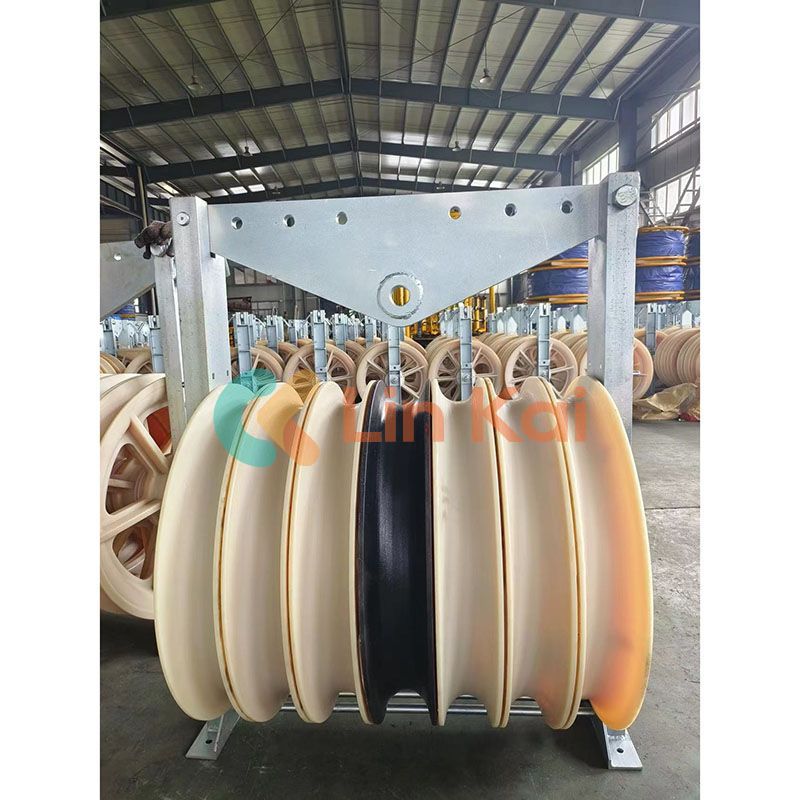

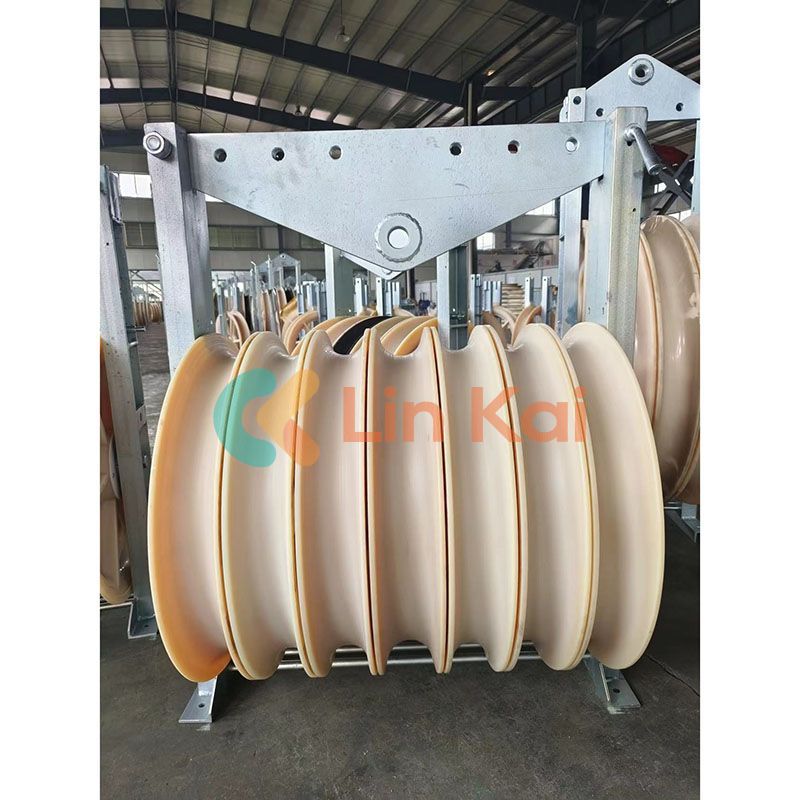

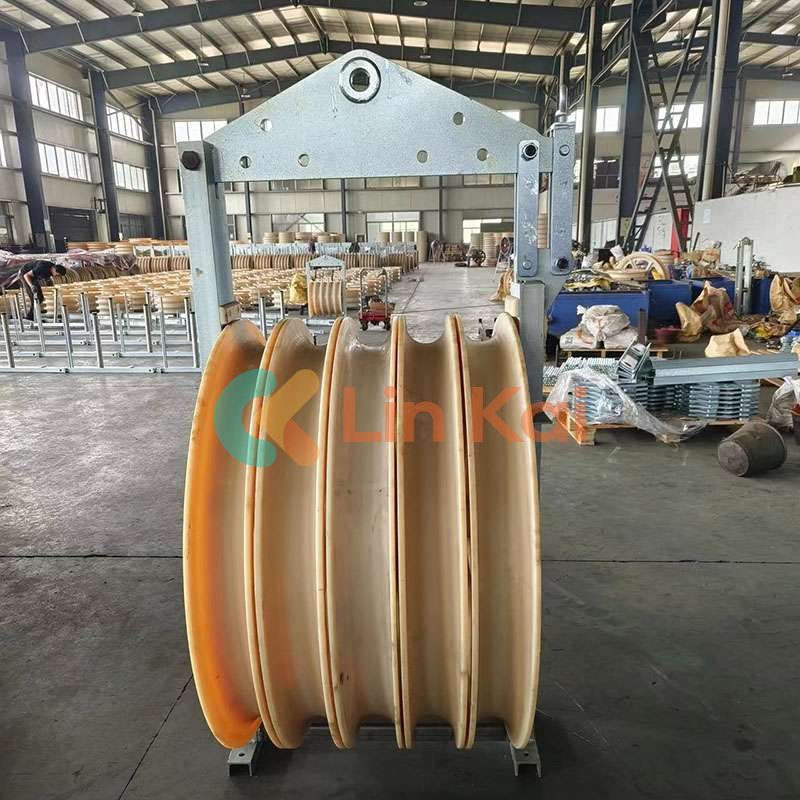

Stringing Bundle Conductors Typically, the utility industry uses Bundle Conductor Stringing Blocks Made in China manufactured at the Lingkai Transmission facility in China for overhead power line construction and maintenance. They are intended to support and direct cables when they are being strung or dragged between structures.
|
Item Number |
Model |
Number of Sheave |
Rated Load (kN) |
Weight (kg) |
Features of Sheave |
|
10101 |
SHD508 |
1 |
20 |
18 |
Rubber coated aluminum sheave |
|
10102 |
SHS508 |
3 |
40 |
61 |
Middle: cast steel sheave Conductor: Rubber coated aluminum sheave |
|
10103 |
SHW508 |
5 |
60 |
93 |
|
|
10104 |
SHDN508 |
1 |
20 |
16 |
MC nylon sheave |
|
10105 |
SHSLN508 |
3 |
40 |
47 |
Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel |
|
10106 |
SHWLN508 |
5 |
60 |
79 |
|
|
10107 |
SHSQN508 |
3 |
40 |
43 |
MC nylon sheave |
|
10108 |
SHWQN508 |
5 |
60 |
70 |
Lingkai Transmission's Bundle Conductor Stringing Blocks 1 Years Warranty are capable of handling heavy loads and can be used in transmission line construction, distribution line construction, and substation projects. They are made from high-strength aluminum alloy sheave, cast steel sheave, and MC Nylon. All the sheaves are mounted on ball bearings to help reduce friction and increase efficiency during the stringing process.
