Model:
|
CH100
|
Punching Force:
|
100 T
|
||||
|
Throat Diameter:
|
135mm
|
Height:
|
400mm
|
Weight:
|
150kg
|
Apply:
|
Punching Copper And Iron
|

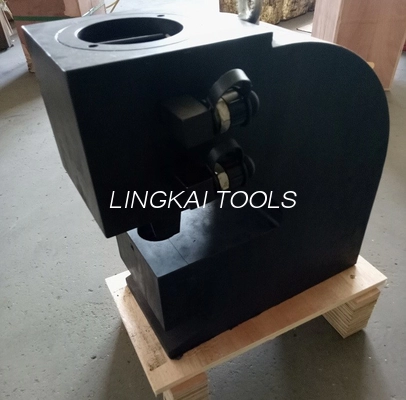

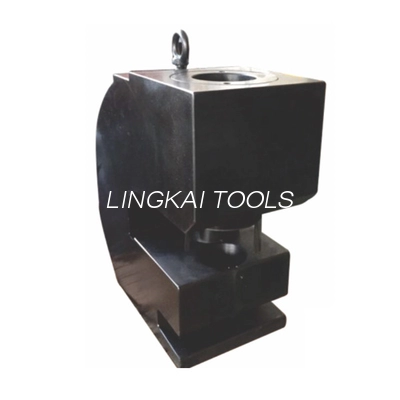

Hydraulic Hole Punching Machine Model CH-100 Used Along With Hydraulic Pump
Hydraulic Hole Puncher Hydraulic Punching Tools with Punching Force 50T
|
Item number |
Model |
(KN) Punching force |
(MM) Punching thickness |
(MM) throat diameter |
(MM) Hight |
(KG) Weight |
(MM) specification of matching mold |
hydraulic pump |
| 06243 | CH-60 |
300 |
iron6 copper10 |
95 | 350 | 19 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06244 | CH-70 | 350 |
iron10 copper12 |
110 | 360 | 35 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06248 | CH-80 |
500 |
iron16 copper20 |
115 | 340 | 45 |
Φ16,Φ18, Φ22,Φ25 |
ZCB6-5-AB |
| 06249 | CH-100 | 1000 |
iron18 copper20 |
135 | 400 | 150 |
Φ25,Φ28, Φ32,Φ36 |
ZCB6-5-AB |
CH -60/70/80/100 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Uses:For copper and aluminum and low carbon steel punching,
it needs to be equipped with a hydraulic pump.
Explain:The mold size can be customized
according to the requirements of the user.
