Model: |
SIL-1 |
Name: |
Mechanical Cable Stand |
Rated Load: |
10KN |
Adjustable Height: |
450-650mm |
Weight: |
22kg |
Type: |
Simple Reel Payout Stand |

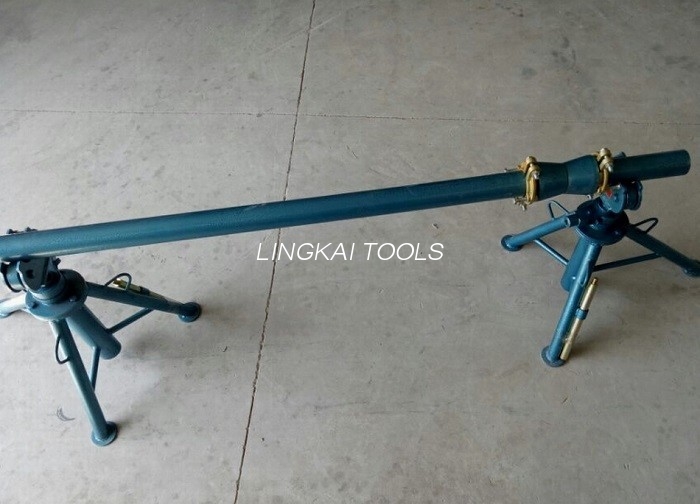

10KN-50KN Simple Reel Payout Stand Cable Drum Jack for Releasing Wire Manually
Adjustable screw jack stand Configuration:Apply to adjusting reel by screw mandrel. Product is used for wire releasing manual.
Explain: Axle is need to buy in additional.
Simple Reel Payout Stand Cable Drum Jack for Releasing Wire Manually
|
Item number |
Model |
(KN)Load |
Height Adjustment Range |
(KG) Weight |
| 15191 | SIL-1 | 10 | 450-650 | 22 |
| 15192 | SIL-3 | 30 | 600-900 | 24 |
| 15193 | SIL-5 | 50 | 900-1300 | 27 |
| 15201 | SIK-3 | 30 | 600-900 | 30 |
| 15202 | SIK-5 | 50 | 900-1300 | 44 |
| 15211 | SIK-3A | 30 | 600-900 | 28 |
| 15212 | SIL-5A | 50 | 900-1300 | 35 |
This cable laying equipments screw type wire pay stand we are making three types, one is the colume type one is the farme type, the only different is the stand plate. To suit to the different construction site, you can freely choose the one accordingly. All are stable enough to hold on the drum.
There are other types cable drum lifting stand/ jacks, hydraulic type cable reel stands, and detachable type cable reel stand. also the hydraulic column type cable reel stand
