MODEL: |
18171G |
DIA: |
12-16MM |
NAME: |
PE ROPE |
BREAKINGFORCE: |
50-80KN |
STD LENGTH: |
1000M |
NET WITGHT: |
114KG~180 |

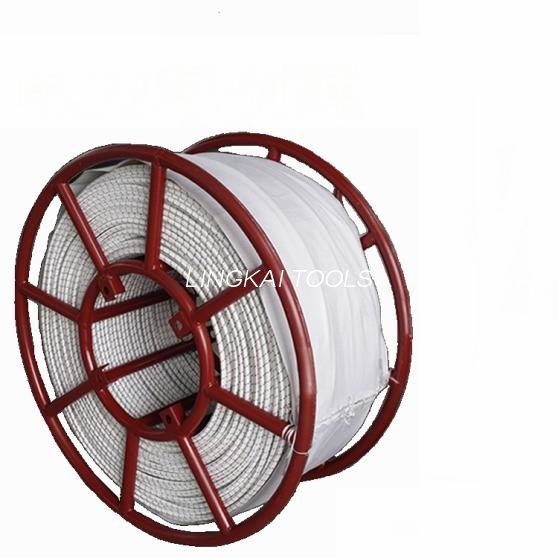

Anti Twisting Double Layer Braided PE Rope with High Strength Polyester Fiber
Anti Twisting Double Layer Braided PE Rope with High Strength Polyester Fiber
The material is Dupont silkfibre,twelve strands structure with protective covering.
This rope is widely used asleading rope in line construction.
| Item | Nominal Diameter | Breaking Load(KN) |
Elongtation with 30% of breaking load |
Std length | Net Weight(kg/1000m) |
| 18171G | 12mm | 50 | 2% | 1000m | 114 |
| 18171H | 14mm | 60 | 2% | 1000m | 148 |
| 18171J | 16mm | 80 | 2% | 1000m | 180 |
The PE rope is specially braided from double layer high strength polyester fiber, anti twisting and light wieght. It is used as pilot rope or pulling rope in overhead transmission line stringing operation. it also can be used for hot line working.
The rope is double layer braided with spliced eye on both end, the rope also can be colored in different colors for hot line working.
The PE rope can be packed in steel drum or plastic bag.
