Crimping Force: |
125T |
Crimping Type: |
Hexa Head |
Stroke: |
24mm |
Crimping Range: |
14-76mm |
Model: |
YJD1250 |
Apply: |
Compressing Conductor |

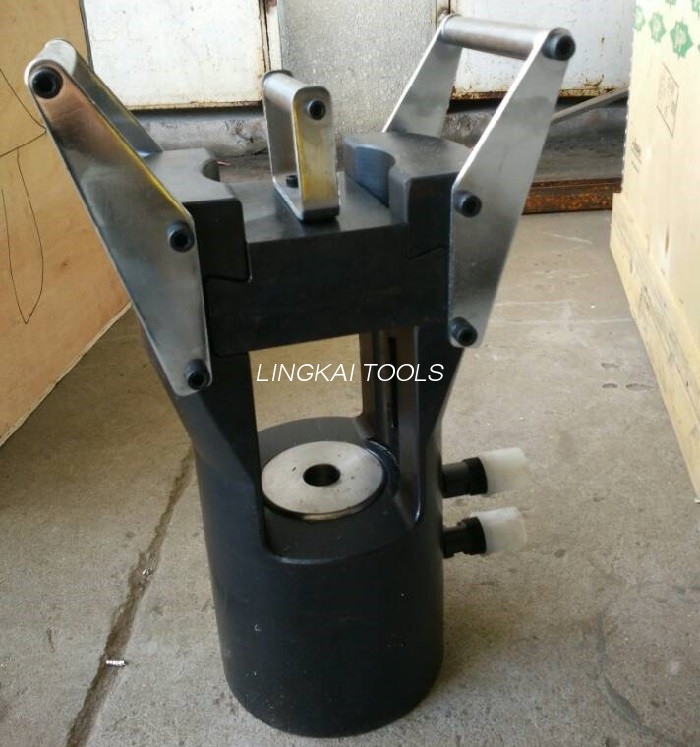

1250KN QY-125 Hydraulic Compressor 24mm Stroke for Crimping 14-76mm Terminals
Split-type Hydraulic Crimping Pliers Production:
|
Item number |
16103 | 16103A | 16104 | 16105 | 16106 |
|
Model |
YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
|
Crimping force |
60T | 100T | 125T | 200T | 300T |
|
Crimping range |
14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
|
Crimping type |
hexagon crimping |
hexagon crimping |
|||
|
Stroke |
24mm | 24mm | 35mm | 35mm | |
|
Heigth |
approx.370mm | approx.480mm | |||
|
(KG) Weight |
approx.N.W20KG G.W30KG |
approx.N.W30KG G.W40KG |
approx.N.W50KG G.W60KG |
approx.N.W85KG G.W95KG |
approx.N.W120KG G.W130KG |
|
Package |
wooden case | wooden case | |||
1250KN QY-125 Hydraulic Compressor 24mm Stroke for Crimping 14-76mm Terminals
125T needs Hydraulic pump should be the rapid super high pressure hydraulic pump (double stage pump out put)
| Item number | Model of matched compressor | Serial specification of compression die sets |
| 16123 | QY-65 | L-26,28.30.32.34.36.38.40.45.50 G-12.14.16.18.20.22.24.26 copper terminators:16-800mm2 |
| 16124 | QY-125 | L-26.28.30.32.34.36.38.40.45.50.52.55.60 G-12.14.16.18.20.22.24.26 copper terminators:16-800 mm2 |
| 16125 | QY-200 | L-26.28.30.32.34.36.38.40.45.50.52.55.60 65.70.75.80 G-12.14.16.18.20.22.24.26.28.30.32 copper terminators:16-800mm2 |
