Name:
|
Hydraulic Hand Crimper
|
Weight:
|
7.4g
|
||||
|
Stroke:
|
38mm
|
Model:
|
16200
|
Oil:
|
200cc Capacity
|
Length:
|
780mm
|

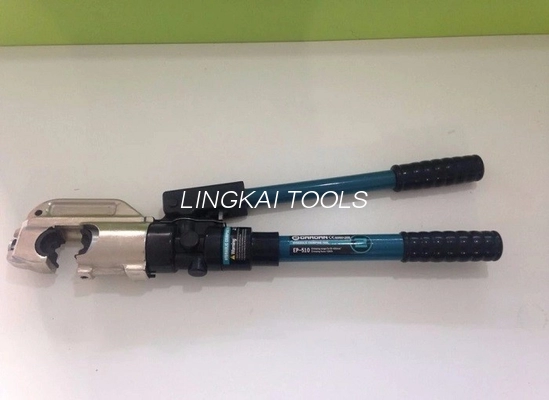

EP-510 Wire Rope Crimping Tools And Wire Rope Swage Crimping Tools for 16-400mm2
Hexagon Hydraulic Terminal Crimping, Hydraulic Hand Crimper, Hydraulic Cable lug Crimping Tool
1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .
2. Open cut design for convenient operation.
3. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.
4. The head could be rotated 180° freely for narrow space working.
5. Fitted with safety valve, when pressure reaches to limited max. Value pressure release automatically to prevent over pressure.
6. Standard die assembling 50,70,95,120,150,185,240,300,400mm².
7. Fiberglass insulated handles to prevent accidental electrichitting.
8.Packing case is made form robust integarl plastic box.
Technical Data for EP-510 Hydraulic Press Tool Manual Hydraulic Hose Crimping Tool
| Order Number | 10645 | 10646 |
| Model | EP-430 | EP-510 |
| Max Compression(KN) | 120 | 130 |
| Stroke(mm) | 30 | 38 |
| Range of Compression Joint | Terminals:50-400mm² | Terminals:50-400mm² |
| Weight(KG) | 6.4 | 7.4 |
| Dies | 50,70,95,120,150,185,240,300,400mm² | 50,70,95,120,150,185,240,300,400mm² |
