Model: |
ATW26mm, 28mm, 30mm, 31mm,32mm |
Description: |
Anti Twisting Braided Steel Wire Rope |
Construction Of Strands: |
1X29T |
Usage: |
High Voltage Big Conductors |
Breaking Load: |
727 KN |
Grade Of Steel Wire: |
1960, 2060 N/MM2 |
Lubrication: |
Optional |
18 Strands Anti Twisting Braided Steel Wire Rope is normally used for stringing overhead big conductor on 800 KV or 1000 KV transmission lines. It is braided from high strength steel wire 1X29T to get super high breaking load.
It is specially braided from galvanized high strength steel wire strands, and usually used for overhead power line stringing and pulling operation. The high strength rope has lot of advantages: high flexibility, complete stability to rotation, homogeneous distribution of pressure between the elementary wires, increased efficiency during stringing operations. So the rope is always used as pilot wire rope or pulling rope for power line construction
18 Strands Anti twisting braided steel wire rope
| Item No. | Nominal diameter | Breaking Load (KN) | Single strand diameter (mm) | Normal T/S (N/mm²) | Net Weight (kg/1000m) | |
| 18214B | 26 | 405 | Φ4.5 | 1960 | 2020 | |
| 18215B | 28 | 540 | Φ5.2 | 1960 | 2630 | |
| 18216 | 30 | 582 | Φ5.4 | 1960 | 2930 | |
| 18217 | 31 | 680 | Φ5.8 | 1960 | 3360 | |
| 18218 | 32 | 727 | Φ6.0 | 1960 | 3600 | |
26mm rope is braided from 18 strands of 1X29T galvanized wire, 600 meter/drum

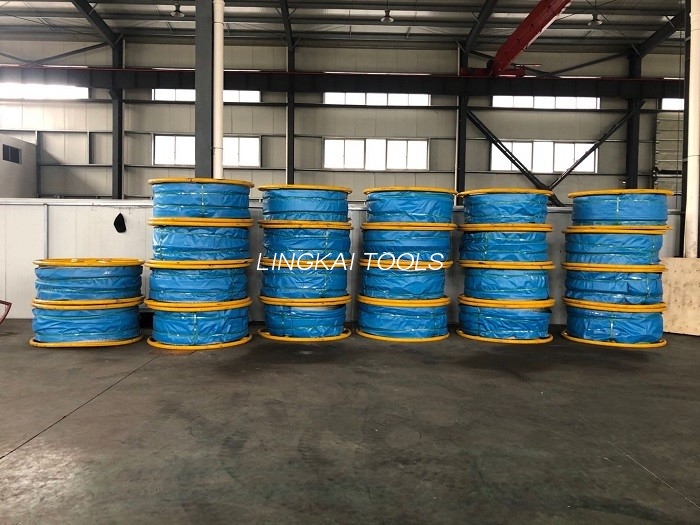

Packed in 1500mm diameter steel drum.
| Cat.Number | Rope Dia. | Breaking Load | Strand Dia. | Structure | Unit Weight | Remark |
| 18101 | 7mm | 35 kN | 2.0mm | 8x19W | 0.160 kg/m | 8 strands |
| 18102 | 9mm | 54 kN | 2.5mm | 8x19W | 0.26 kg/m | 8 strands |
| 18103 | 11mm | 77 kN | 3.0mm | 8x19W | 0.373 kg/m | 8 strands |
| 18104 | 13mm | 105 kN | 3.5mm | 8x19W | 0.510 kg/m | 8 strands |
| 18105 | 15mm | 137 kN | 4.0mm | 8x19W | 0.667 kg/m | 8 strands |
| 18201A | 9mm | 50 kN | 2.0mm | 12x19W | 0.250 kg/m | 12 strands |
| 18202A | 10mm | 70 kN | 2.3mm | 12x19W | 0.356 kg/m | 12 strands |
| 18203A | 11 mm | 85 kN | 2.5mm | 12x19W | 0.405 kg/m | 12 strands |
| 18204A | 12 mm | 100 kN | 2.7mm | 12x19W | 0.510 kg/m | 12 strands |
| 18205A | 13 mm | 115 kN | 3.0mm | 12x19W | 0.620 kg/m | 12 strands |
| 18206A | 14 mm | 130 kN | 3.2mm | 12x19W | 0.710 kg/m | 12 strands |
| 18207A | 15mm | 143 kN | 3.3mm | 12x19W | 0.770 kg/m | 12 strands |
| 18208A | 16mm | 160 kN | 3.5mm | 12x19W | 0.800 kg/m | 12 strands |
| 18209A | 18mm | 206 kN | 4.0mm | 12x19W | 1.06 kg/m | 12 strands |
| 18210A | 19mm | 236 kN | 4.3mm | 12x19W | 1.21 kg/m | 12 strands |
| 18211A | 20mm | 266 kN | 4.5mm | 12x1T25 | 1.31 kg/m | 12 strands |
| 18211B | 20mm | 275 kN | 4.5mm | 12x1T29 | 1.35 kg/m | 12 strands |
| 18212A | 22mm | 313 kN | 4.8mm | 12x1T25 | 1.49 kg/m | 12 strands |
| 18212B | 22mm | 325 kN | 4.8mm | 12x1T29 | 1.54 kg/m | 12 strands |
| 18213A | 24mm | 342 kN | 5.0mm | 12x1T29 | 1.65 kg/m | 12 strands |
| 18213B | 24mm | 375 kN | 5.2mm | 12x1T29 | 1.80 kg/m | 12 strands |
| 18214A | 26mm | 400 kN | 5.4mm | 12x1T29 | 1.95 kg/m | 12 strands |
| 18214B | 26mm | 405 kN | 4.5mm | 18x1T29 | 2.02 kg/m | 18 strands |
| 18215A | 28mm | 462 kN | 6.0mm | 12x1T25 | 2.24 kg/m | 12 strands |
| 18215B | 28mm | 540 kN | 5.2mm | 18x1T25 | 2.63 kg/m | 18 strands |
| 18216 | 30mm | 582 kN | 5.4mm | 18x1T29 | 2.93 kg/m | 18 strands |
| 18217 | 31mm | 680 kN | 5.8mm | 18x1T29 | 3.36 kg/m | 18 strands |
| 18218 | 32mm | 727 kN | 6.0mm | 18x1T29 | 3.60 kg/m | 18 strands |
| SUGGESTED WORKING LOAD: 1/3 OF BREAKING LOAD | ||||||
Shipment
1. The anti twisting steel wire rope will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
