Model: |
CH60 |
Punching Force: |
300KN |
Throat Diameter: |
95mm |
Apply: |
Punching Iron And Copper |
Hydraulic Pump: |
CP700 ZCB6-5-A3 |
Weight: |
19kg |

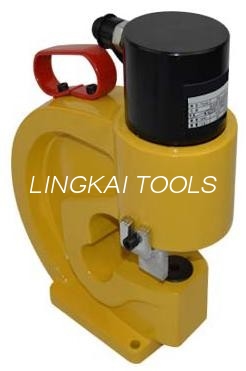

Output 30 Ton CH-60 Hydraulic Puncher Hole Punching Tool Hydarulic Tools
Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60
|
Item number |
Model |
(KN) Punching force |
(MM) Punching thickness |
(MM) throat diameter |
(MM) Hight |
(KG) Weight |
(MM) specification of matching mold |
hydraulic pump |
| 06243 | CH-60 |
300 |
iron6 copper10 |
95 | 350 | 19 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06244 | CH-70 | 350 |
iron10 copper12 |
110 | 360 | 35 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06248 | CH-80 |
500 |
iron16 copper20 |
115 | 340 | 45 |
Φ16,Φ18, Φ22,Φ25 |
ZCB6-5-AB |
| 06249 | CH-100 | 1000 |
iron18 copper20 |
135 | 400 | 150 |
Φ25,Φ28, Φ32,Φ36 |
ZCB6-5-AB |
Explain:The mold size can be customized according to the requirements of the user
Uses:For copper and aluminum and low carbon steel punching,it needs to be equipped with a hydraulic pump.
Features
Operation speed of CH-60 Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.
With pressing mechanism design, punching precision is good.
With the hydraulic pump as power, it can used in no power site.
