Color:
|
Yellow
|
Diameter:
|
8mm
|
||||
|
Length:
|
200m
|
Apply:
|
Cable Laying Project
|
Main Material:
|
Fiberglass
|
Item:
|
Cable Pulling Tools
|

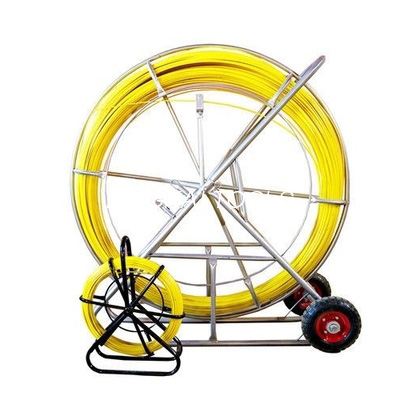

8mm 200m Yellow Color Fiberglass Cable Pulling Tools for Cable Laying Project
Fiberglass Manufacturing Introduce
8mm 200m Yellow Color Fiberglass Cable Pulling Tools for Cable Laying Project
To meet our customers demands on the high perforamce and durability, we formulated the raw material very professional. The core of the rod is making by impregnating high strength continuous glass fiber filaments with a liquefied resin, through the pultrusion process.
Fiberglass Cable Pulling Tools
8mm 200m Yellow Color Fiberglass Cable Pulling Tools for Cable Laying Project
The fibers are drawn into a heated die where the resin matrix is cured,bonding the fibers together and alllowing mechnical loads to be transmitted through the matrix and distributed amongst the fibers.The resulting pultruded rod combines both the high stiffness required to push the rod through long distances of ducting,with the flexibility to handle tight bends without damage.This inner core is then coated with a highly durable,scratch resistant polypropylene sheath which protects the core from mechnical damage.

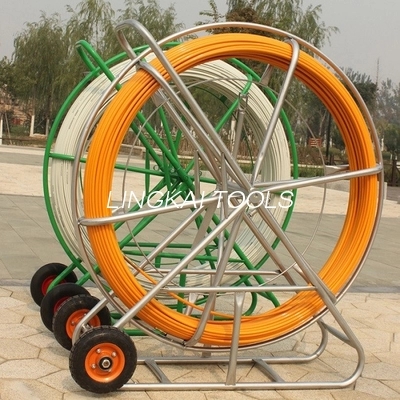

Mini Duct Rod without wheel Fiberglass Duct rod with wheel
Duct Push Rodder
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16, |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Character | Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion | |
| Packing | Inside | plastic woven strip wind around the frame |
| Outside | Wooden pallet and Wooden box |
Please click below picture to find the video about application method
