Name:
|
Cable Reel Stands
|
Type:
|
Hydraulic Colume Type
|
||||
|
Model:
|
SIW-20
|
Rated Load:
|
200kn
|
Adjustable Hight:
|
1550-2100
|
Apply:
|
Wire Releaseing
|
15-20 Ton Hydraulic Cable Drum Jack Stand for Cable Reel in Power Line Construction
200kn Rated Load Wire Reel Jack Stands Hydraulic Colume Type For Wire Releasing
|
Item number |
Model |
Rated Load |
Height Adjustment Range
|
Type |
(KG) Weight |
| 21349 | SIW-3 | 30 | 700-1050 |
Hydranulic Column
|
147 |
| 21350 | SIW-5 | 50 | 800-1200 | 168 | |
| 21341 | SIW-10 | 100 | 1350-1750 | 250 | |
| 21344 | SIW-20 | 200 | 1550-2100 | 500 | |
| 21345 | SIW-50 | 500 | 1850-2250 | 1000 |

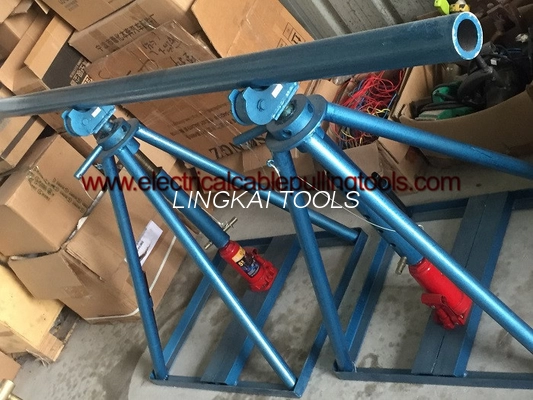

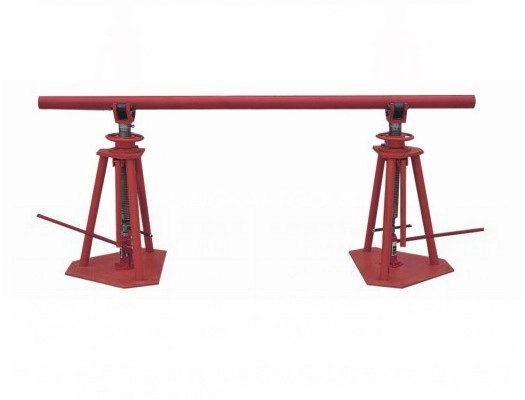

15-20 Ton Hydraulic Cable Drum Jack Stand for Cable Reel in Power Line ConstructionUses:Apply to carrying the wire reel for wire extension on line construction.The lift height can be adjusted. Explain:Standard configuration, including shaft.
Manufacture cable drum liter stands,adjustable jack stands.
1. heavy duty hydraulic cable drum stands
2. SIW-20 MODEL
3. both sides has the hydraulic jack ,the rated load is 20T, and the break load is 40T.
4, it is applied for wire releasing in line power constructions.
5. the height adjustable can be 1550-2100mm
6. Plant also are making the other type cable drum stands, reel stands.
7. Plant can customized the Spec per clients's requirements.
