Model: |
EPCB-301 |
Name: |
Hydraulic Bus Bar Processor |
Voltage: |
220V 50HZ |
Bedning Force: |
170KN/200KN |
Cutting Force: |
200kn300kn |
Function: |
Cutting Punching Bending |

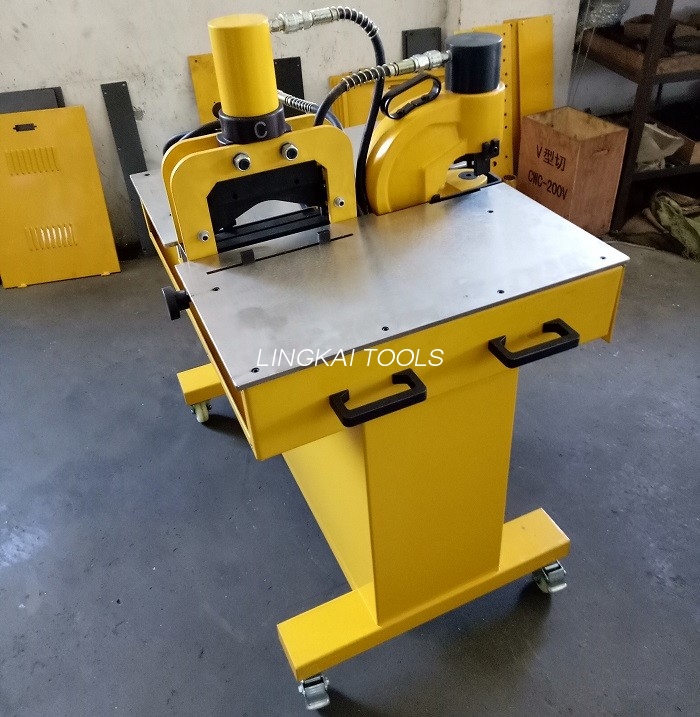

EPCB-301 Multi Function Hydraulic Bus bar Processor Machine for Cutting,Punching and Bending
Hydraulic Bus-bar machine
| Item number | 06232 | 06231A | 06231 |
| Model | EPCB-301 | EPCB-401A | EPCB-401 |
| Function |
with three functions,cutting, punching and bending |
punching, bending and crimping |
with Four functions,cutting, punching and bending(horizontal and erective) |
|
Dimension of work table |
approx.690x690x730mm | approx.690x690x730mm | approx.690x690x730mm |
|
Voltage single phase |
220V50HZ | 220V50HZ | 220V50HZ |
|
Rating oil pressure |
700kg/cm2 | 700kg/cm2 | 700kg/cm 2 |
| Bending force | 170KN/200KN | 170KN/200KN | 270KN |
|
Bending range |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 125x12.5mm max |
| Cutting force | 200KN/300KN | 200KN/300KN | 200KN/300KN |
| Cutting rang | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
| Punching force | 300KN/350KN | 300KN/350KN | 300KN/350KN |
|
Distance from hole to sheet side |
95x110mm max | 95x110mm max | 95x110mm |
| Punch rang |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(φ13.8mm), 5/8"(φ17mm),3/4"(φ20.5mm) |
| Package | wooden case | wooden case | wooden case |
Multi-function Busbar Processing Machine
Multi Function Hydraulic Busbar Processor is the combination of punching,bending and cutting.
The manometer with the pressure of 1000kgs/cm makes the process under control,prevent the machine from overloading.
The hand switch can be adjusted easily to control the depth and the width of the sheet
Four direction valve makes the process of punching,bending and cutting go accurately
Reliable and stable foot-type switch
