Model: |
EPCB-301 |
Function: |
Bending Cutting Punching |
Name: |
Hydarulic Bus Bar Machine |
Bending: |
150x10mm Al/cu Plate |
Force: |
17T,20T |
Packing: |
Wooden Case |

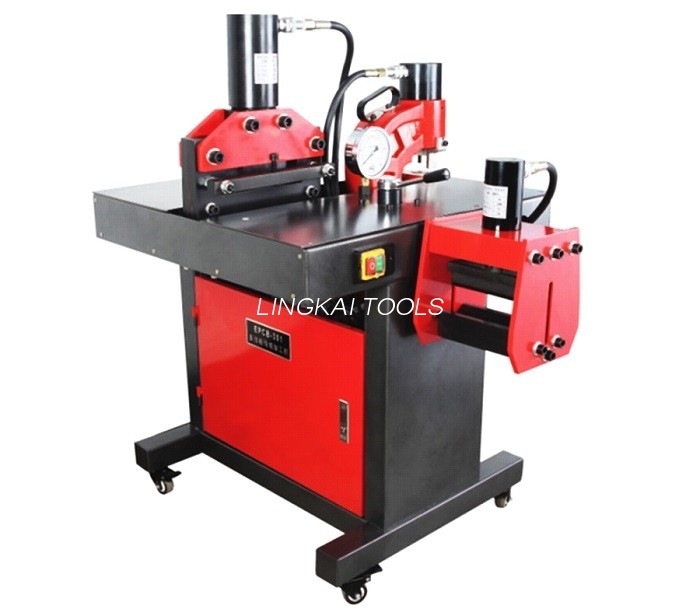

220V 50HZ Hydraulic Busbar Bending Cutting Machine For 150X10mm Al/Cu Plate
Hydraulic Bus-bar machine
|
Item number |
06232 | 06231A | 06231 |
| Model | EPCB-301 | EPCB-401A | EPCB-401 |
|
Function |
with three functions,cutting, punching and bending |
with three functions, cutting,
punching, bending and crimping |
with Four functions,cutting, punching and bending(horizontal and erective) |
|
Dimension of work table |
approx.690x690x730mm |
approx.690x690x730mm | approx.690x690x730mm |
|
Voltage single phase |
220V50HZ | 220V50HZ | 220V50HZ |
|
Rating oil pressure |
700kg/cm2 | 700kg/cm2 | 700kg/cm 2 |
|
Bending force |
170KN/200KN | 170KN/200KN | 270KN |
|
Bending range |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 125x12.5mm max |
|
Cutting force |
200KN/300KN | 200KN/300KN | 200KN/300KN |
|
Cutting rang |
150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
|
Punching force |
300KN/350KN | 300KN/350KN | 300KN/350KN |
|
Distance from hole to sheet side |
95x110mm max | 95x110mm max | 95x110mm |
|
Punch rang |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
φ10.5mmΦ13.8mm φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(φ13.8mm), 5/8"(φ17mm),3/4"(φ20.5mm) |
|
Package |
wooden case | wooden case | wooden case |
220V 50HZ Hydraulic Busbar Bending Cutting Machine For 150X10mm Al/Cu Plate:
1. Dongchuan Brand
2. Have three functions, cutting, punching, and bending
3. 220V 50HZ voltage single phase
4. for bending and cutting AL/Cu Plate
5. Punching the copper, aluminum and low carbon steel punching
6. Model sizes can be customized.
