Material: |
Aluimnum Alloy |
Cable Diameter: |
8-20mm |
Rated Load: |
25 |
Used For: |
OPGW Stringing Site |
Type: |
Cable Wire Gripper |
Weight: |
3.8kg |
25KN OPGW Cable Wire Gripper For 8-20mm Cable Diameter Aluminum Alloy Wire Gripper
Optical Cable Wire Gripper Products:
|
Item number |
(MM) Cable Diameter |
(KN) Rated Load |
(KG) Weight |
| 20101 | Φ8-20 | 25 | 3.8 |
| 20102 | Φ20 | 45 | 3.8 |
| 20103 | Φ11-15 | 16 | 5.6 |
| 20104 | Φ15-17 | 16 | 5.6 |
Configuration: Apply to OPGW construction.
Feature: The main body is made of aluminum alloy and it can protect the OPGW effectively
Explain: OPGW diamter of 20101, is need to indicated when customer place.
Quick Information:

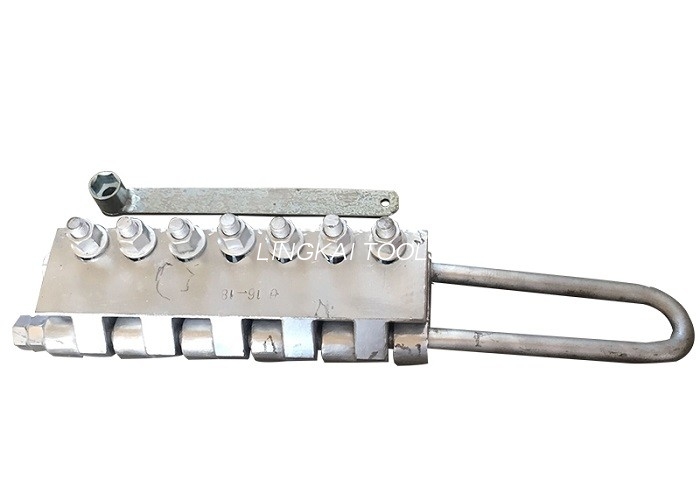

1) 20101 type as the below photo
2) Apply for 8-10mm Cable diamter OPGW
3) Optical Cable wire gripper
4) Apply for OPGW Transmission line stringing
5) Donghuan Brand
