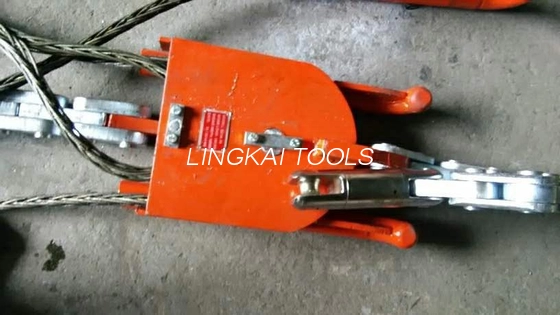

Transmission Line Running Head Board
Working Load:
Max 180KN
Function:
Stringing Conductors
Quantity Of Conductors:
3
Sheave Width Of Stringing Blocks:
100,110MM
Model:
SZ3A-10. SZ3A-13 SZ3A-18

Running Boards For Three Bundled Conductors In Transmission Distribution Lines





Specifications

Item number Model Rated load (kN) Applicable stringing block sheave width(mm) Weight (kg) Steel rope length (m)
17228 SZ3A-10 100 100 114 1×30+1×15
17229 SZ3A-13 130 110 130 1×30+1×15
17230 SZ3A-18 180 110 142 1×30+1×15

Feature: It is designed to avoid torsion strain accumulation during line stringing
Notes: Can be customized according to the specification of other stringing blocks.





Product Description

Running Head Boards are used for bundled conductors stringing and pulling on the stringing blocks. We have designed and produced 2, 3, 4, 6,8 conductors running boards. There are two types of running boards according to customer's requirement. One is fixing type, another is balance type with center pulley and steel wire pulling rope.



4 Bundled Conductors Running Boards

Item No. Model Description Rated Load (KN) Weight (kg) Marks
17231 SZ4A-13 Used for 660X100 stringing block 130 96 Balance pulley structure
17232 SZ4B-13 Used for 660X100 stringing block 130 65 Conductors are stringing separately from different bull wheels
17233 SZ4B-18 Used for 822X110 stringing block 180 110
17234 SZ4B-25 Used for 822X110 stringing block 250 110
17238 SZ4C-25 Used for 822X110 stringing block 250 110
17239 SZ4B-32 Used for 1024X125 stringing block 320 125

Application: It is used for stringing 4 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.

3 Bundled Conductor Balance Type Running Boards In High Power Transmission Lines 1



2 Bundled Conductors Running Boards

Item No. Model Description Working Load (KN) Weight (kg) Marks
17220 SZ2-8 Used for 508X75 stringing block 80 17 Conductors are stringing separately from different bull wheels
17221 SZ2-8A Used for 660X100 stringing block 80 19
17222 SZ2-8B Used for 822X110 stringing block 80 20
17223 SZ2A-8 Used for 660X100 stringing block 80 90 Balance pulley structure
17224 SZ2B-13 Used for 822X110 stringing block 130 55 Conductors are stringing separately from different bull wheels
17225 SZ2C-13 Used for 916X110 stringing block 130 50
17226 SZ2B-18 Used for 1024X125 stringing block 180 65

Application: It is used for stringing 2 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.



6 (8) Bundled Conductors Running Boards

Item No. Model Description Rated Load (KN) Weight (kg) Marks
17241 SZ6B-25 Used for 822X110 stringing block 250 140



Conductors are stringing separately from different bull wheels

17242 SZ6B-25A Used for 660X100 stringing block 250 137
17243 SZ6A-18 Used for 660X100 stringing block 180 160 Balance Type
17244 SZ6A-25 Used for 822X110 stringing block 250 180
17246 SZ8B-28 Used for 822X110 stringing block 280 240 Fixing Type

Application: It is used for stringing 6 and 8 bundled conductors, to connect the pilot wire rope with conductors. The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks. The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.
