Name:
|

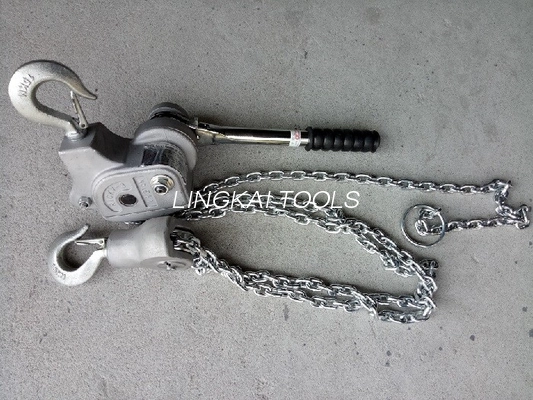

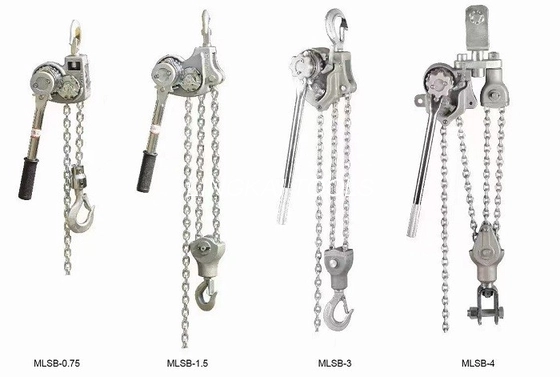

Handle Hoist
|
Rated Load:
|
90kn
|
||||
|
Material:
|
Aluminum Alloy
|
Weight Max:
|
24 Kgs
|
Standard Lifting Height:
|
1.5 M
|
Application:
|
Listing Tools
|
Feature
Great Quality manual hand series lifting chain hoist block is light weight, suitable for simple manual operation and has a strong safety performance and high safety of the product performance, easy to use security; specifically designed for heavy industry, 360 ° rotating hand chain guide allowed operation from all angles, so that the operator can stay away from the danger zone.
| Item No. | 14401 | 14411 | 14421 | 14431 | 14231 | 14441 | |
| Rated Load(KN) | 7.5 | 15 | 30 | 40 | 60 | 90 | |
| Minimum distance between hooks(MM) | 320 | 380 | 480 | 380 | 620 | 700 | |
| Standard lifting height(M) | 1.5 | ||||||
| Number of lines of lifting chain(row) | 1 | 1 | 1 | 1 | 2 | 3 | |
| Net weight(KG) | 4.7 | 5.8 | 9.5 | 14.5 | 18 | 24 | |
| Item No. | Length of chain(3M) | 14402 | 14412 | 14422 | 14432 | 14442 | 14446 |
| Length of chain(5M) | 14404 | 14414 | 14424 | 14434 | 14444 | 14448 | |
| Encasement dimension(MM) | 0.55 | 1.1 | 1.7 | 2.1 | 2.8 | 3.2 | |
Feature
Great Quality manual hand series lifting chain hoist block is light weight, suitable for simple manual operation and has a strong safety performance and high safety of the product performance, easy to use security; specifically designed for heavy industry, 360 ° rotating hand chain guide allowed operation from all angles, so that the operator can stay away from the danger zone.
| Item number | 14201 | 14211 | 14215 | 14221 | 14231 | 14241 | 14245 |
| Rated load(KN) | 5 | 7.5 | 10 | 15 | 30 | 60 | 90 |
| Minimum distance between hooks(MM) | 260 | 320 | 380 | 380 | 480 | 620 | 700 |
| Standard Lifting Height(M) | 1.5 | ||||||
| Number of lines of Lifting Chain(row) | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Weight(KG) | 4.2 | 7.5 | 11.5 | 11.5 | 21 | 31.5 | 47 |
| 3m Length Of Chain | 14202 | 14212 | 14216 | 14222 | 14232 | 14242 | 14246 |
| 5m Length Of Chain | 14204 | 14214 | 14218 | 14224 | 14234 | 14244 | 14248 |
| Weight of 1m chain(KG) | 0.52 | 0.8 | 1.4 | 1.4 | 2.2 | 4.4 |
6.6 |
