Name: |
Powered Winch |
Capacity: |
3 Ton |
Feature: |
High Efficiency |
Used: |
Pulling Hoisting |
Slow: |
30 M/min |
Quick: |
15m/min |

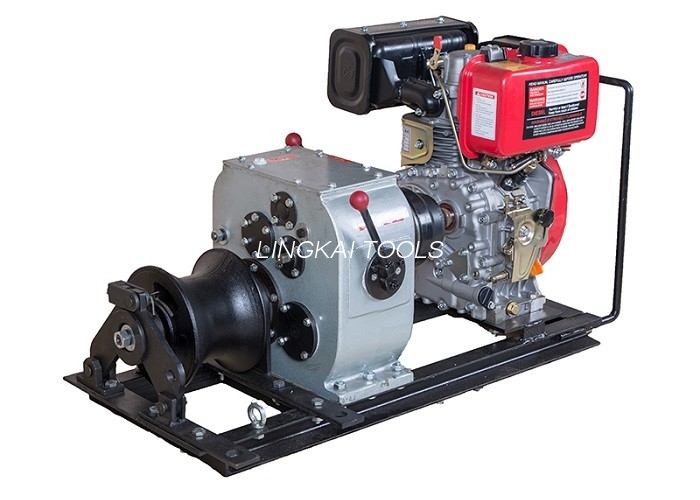

3Ton Portable High Efficiency Winch With Diesel Engine for Pulling Hoisting
Brief Introduction
Winch is set up high-voltage transmission lines and laying of aerial construction machinery underground cables, smooth, convenient for Tower Group legislature, set up guide (land) lines, lifting, pulling in a variety of complex conditions.Widely used in electricity, telecommunications line construction group established tower, mobile actinomycetes, tight line, also in place lifting and construction, docks and other traction weights, suitable for field sites without electricity, using handy.
The experiments and field practice has proved that with a reasonable structure, small size, light weight, utilitarian large, flexible operation, easy handling, etc., the majority of electric power, telecommunications operators welcome.
Brake System
Automatic clamp brake and clutch brake transmission interlock two brakes are braking action in positive and negative directions.
Specifications
| Model NO. | Gear | Rated Pulling Force(KN) | Pulling Speed(m/min) | power |
| JM3B | slow | 30 | 12.5 | diesel engine |
| quick | 15 | 24 | ||
| reverse | No lifting | 11.5 |
