Name: |
Reel Stand |
Type: |
Hydraulic |
Model: |
SI |
Max Load: |
300 KN |
Weight: |
280 Kg |
Disc: |
<= 30 T |

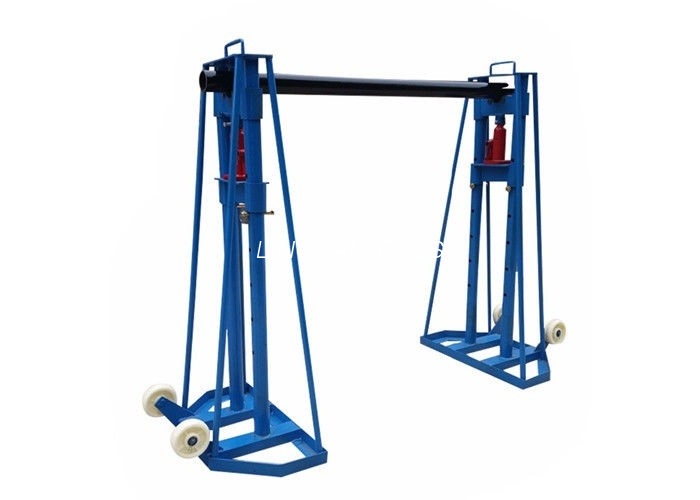

10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables
10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables
Cable reel stand is almost indispensable for use in the cable yard. Versatile and easily adjustable within seconds to accommodate a vast range of drums. Excellent all round stability, fitted with wheels to be easily moved by one person. Supplied complete with spindle bar and locking collars.
Technical Data:300 KN Max Load Cable Jack Stands , Wire Pulling Tools For Releasing Cables
| Model | Rated Load | Applicable wire dics | Disc Weight | Weight |
| SI-5 | 50KN | ≤2400 | ≤5T | 80KGS |
| SI-10 | 100KN | ≤2700 | ≤10T | 100KGS |
| SI-15 | 150KN | ≤3600 | ≤15T | 122KGS |
| SI-20 | 200KN | ≤4000 | ≤20T | 145KGS |
| SI-30 | 300KN | ≤4000 | ≤30T | 280KGS |
Heavy Load Hydraulic Cable Reel Stand, Adjustable Cable Drum Jack
Cable reel stand is used to lift, support and stabilise low and high voltage cable drums to enable efficient cable laying and pulling for low and high voltage cables.
It is applicable to the placement of the cable tray,hydraulic lifting,carrying the weight of a large.
The bottom with small wheels,easy to move,can be equipped with a braking device,using the foot brake.
Other Type Simple reel payout stands is applied to adjust reel by screw mandrel. Light, handy and practicable. it fit releasing wire manually.
Large capacity hydraulic conductor reel stands: is connected with hydraulic tensione or puller tensioner throught quick coupling.
Please click below picture to find the video about the testing
