Model: |
CWC200 |
Cutting Force: |
30T |
Max Thicknedd: |
Cu/Al Plate 12mm |
Width: |
200mm |
Height: |
Approx 460mm |
Packing: |
Wooden Case |

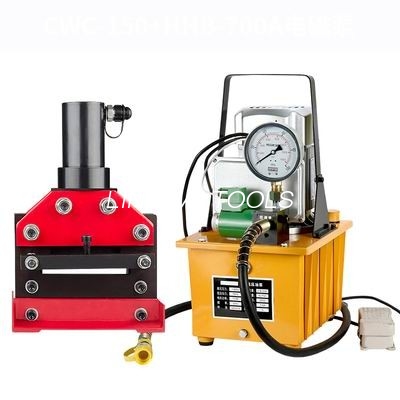

CWC Hydraulic Copper and Aluminum Busbar Cutter for 12mm 200mm Cu/ Al Plate
Hydraulic Copper Aluminum Bus-bar Cutter
|
Item number |
06242-1 | 06242-1A |
| Model | CWC-150 | CWC-200 |
|
Cutting force |
200KN | 300KN |
|
Max thickness of sheet |
CU/AL plate 10mm | 12mm |
|
Width of sheet |
CU/AL plate 150mm |
200mm |
|
Height |
approx.440mm | approx.460mm |
|
(KG) Weight |
approx.N.W30KG G.W33KG |
approx.N.W37KG G.W40KG |
|
Package |
wooden case | wooden case |
Configuration: It is used to cut off the copper and aluminum platoon,and thehydraulic pump needs to be matched.
Characteristic
The unilateral type structure, cutting in larger power, but it does not waste materials.
The blade adopts alloy tool steel forging fine grinding, the incision is neat, no burr and no deformation.
During cutting, the copper and aluminum row should not be fixed, any position is OK.
The pressing device is equipped with the blade side in order to prevent the tilt of copper and aluminum row.
It can use with pump CFP-800-1,CP-700,EHP-70ZS,EHP--63A.
