5 Ton Manual Turned Winch Pulling Wire Rope In Power Line Construction

5 Ton Manual Turned Winch Pulling Wire Rope In Power Line Construction

High quality 5 Ton Manual Turned Winch Pulling Wire Rope In Power Line Construction from China, China's leading gasoline powered winch product, with strict quality control gas powered winch factories, producing high quality gas powered winch products.

Model:
LJS-30
Rated Load:
30kn
Name:
Manual Turned Winch
Handspike Hole Dia:
60mm
Weight:
65kg
Feature:
Light Weight

5 Ton Manual Turned Winch Pulling Wire Rope In Power Line Construction for Pulling Wire Rope

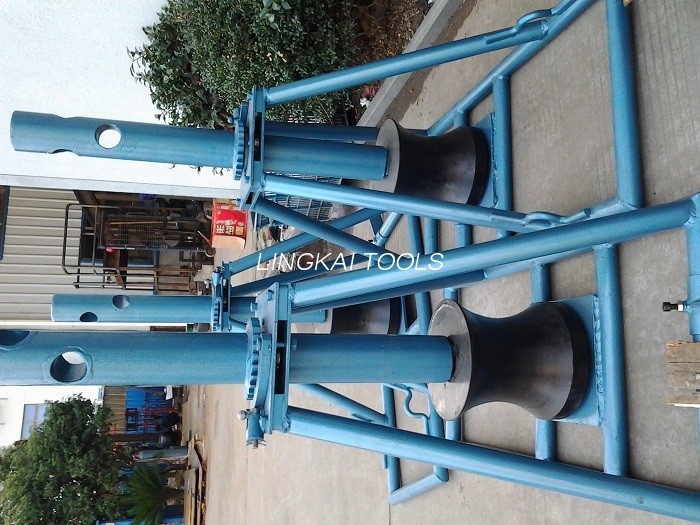

This hand turned winch is usually fixed on the ground. The winch handspike is pushed manually.

This manul turned winch is used when it fixed on the ground, pushing winch handspike manually. Users should provide the handspike themselves.

It has the light weight, and very easy operation features.

Main Specifications

Item Number Model Rated Load (kN) Weight (kg) Drum bottom of groove diameter(mm Handspike hole diameter (mm)
09201 LJS-10 10 25 120 25
09202 LJS-30 30 65 160 65
09203 LJS-50 50 75 160 75





Hot Tags: gasoline powered winch, gas powered winch, Cable Winch Puller
