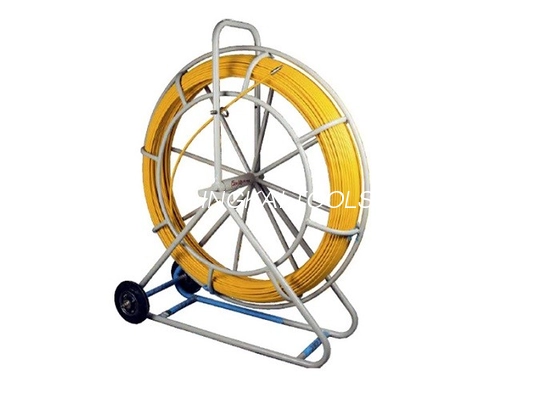

6 Mm Traceable Cable Duct Rodder , Cable Laying Tools In Telecom Project

6 Mm Traceable Cable Duct Rodder , Cable Laying Tools In Telecom Project

Rod Introduction

Fiber glass rod inner, if applying the extruded process, which is made of E-fiberglass and high quality resin at high temperature.

Fiber glass rod outer is produced by high density polyethylene coating.

Assembly: metal frame powder coated; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling; parking brake for the flexible rod control.

Best Advantages

1. Copper wire inside is optional, which is for tracing easily or other professional usage.
2. Rolling bearing cage for mobility is strong and easy to use.
3. Feed device allows rod in and out smoothly.
4. Rustproof bull-nose pulling tips with diverse accessories.

More Information Share

• Rod diameter: 4mm - 16mm.
• Length of fiberglass rod: 30m - 500m.
• Working temperature: -40°C to + 80°C (-40°F to 176°F).
• Max pulling strength: 4.5T
• Frame size: 160mm × 450mm × 500mm, 170mm × 600mm × 750mm, etc. (maximum size: 550mm × 1500mm × 1600mm).
• Wheel: pneumatic/iron tyre or no wheel.
• Fiberglass rod color: yellow, blue, white, red, black.
• Package: plastic wrap and then into carton.
• Operation instruction: see the Technology page.

Note: we offer various sizes and colors for any specific requirement as customers' demand.
