Sheave Number:
|
1-7
|
Capacity:
|
50kN-200kN
|
||||||||
|
Material:
|
MC Nylon/Aluminum Alloy/Cast Steel
|
Traction Force:
|
20kN-75kN
|
Weight:
|
30kg-200kg
|
Product Name:
|
Transmission Stringing Blocks
|
Sheave Diameter:
|
660*560*110mm
|
Sheave Width:
|
110mm
|
Transmission Stringing Blocks are a specialized type of overhead conductor blocks designed for use in transmission line construction and maintenance. With a sheave diameter of 660*560*110mm, they can handle a weight range of 30kg - 200kg and a capacity range of 50kN - 200kN. The transmission line blocks have a traction force range of 20kN-75kN and come with a one year warranty. Transmission Stringing Blocks are the ideal choice for those looking for an efficient, safe and reliable solution for their transmission line needs. They are great for overhead conductor blocks, transmission stringing blocks, and transmission connector blocks.
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
The Driving Torque are made of top MC Nylon material from USA with 96% pure raw material. The frame is made of 8# steel and is highly galvanized. Additionally, the overall torque is secured by imported bearing mounted on to it. Their endurance is also 2 years longer than the normal driving.
| Parameter | Details |
|---|---|
| Product Name | Transmission Stringing Blocks |
| Sheave Width | 110mm |
| Material | MC Nylon/Aluminum Alloy/Cast Steel |
| Capacity | 50kN-200kN |
| Warranty | 1 Year |
| Weight | 30kg-200kg |
| Sheave Diameter | 660*560*110mm |
| Sheave Number | 1-7 |
| Traction Force | 20kN-75kN |

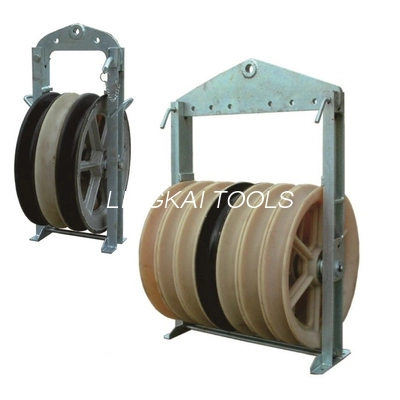

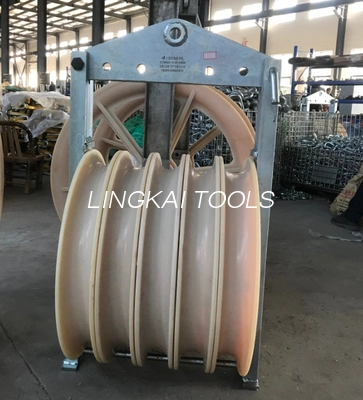

The Stringing Block is equipped with a 660mm MC nylon sheave and it is suitable for stringing overhead line conductors with a maximum size of ACSR630.
We provide technical support and service for Transmission Stringing Blocks. We provide customer service and technical assistance for product installation, troubleshooting, and maintenance. Our team of professionals is available to answer any questions or concerns that you may have regarding the product. We also provide resources to help you learn more about the product and its applications. From product manuals to instructional videos, we provide you with all the necessary tools to ensure you have a successful experience with the product.
