Material: |
Steel |
Feature: |
Single Acting |
Type: |
Hand |
Low Pressure: |
2mpa |
High Pressure: |
70mpa |
Oil Capactiy: |
900cc |

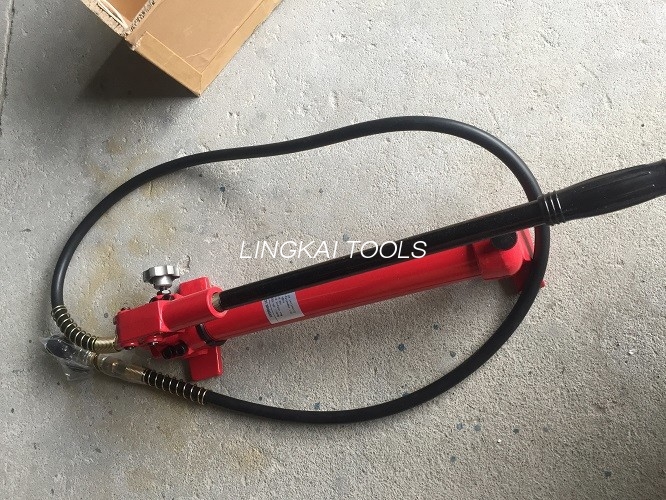

Model CP-700 70Mpa High Pressure Hydraulic Hand Pump Manual/Hand Pump
Hand Hydraulic Pump CP-700 is a Hand-operated Single-Acting pump.
It is used to provide pressurized oil to compatible remote control single-acting tools:
Crimping Head / Cutting Head / Cylinder / Pipe bender / Busbar tools etc.
Where 700Bar (10000PSI) working pressure is needed. With PT 3/8" quick coupler,
pumps can be quickly connected with compatible tools. Double speed unit and safety valve assembled inside make operation fast and safe
Application: Supply pressurized oil to compatible tools
Single-Acting Hand Operated
Rated Pressure: 700Bar (10000psi)
Oil Reservoir: 900CC
Working Pressure: Low Pressure 0-20Bar High Pressure: 20-700Bar
Oil Delivery Speed: Low Pressure 12.26cc/stroke High Pressure 2.26cc/stroke.
Hand operated style: No electric power is needed.
Quick Coupler: For fast connection with compatible tools.
Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke),
and then bulid sufficient working pressure under losd condition (20-700Bar)
Safty Valve: For safe operation. Automatically relief pressure when rated pressure is reached,
protect hydraulic system from overpressure
Steel Case Package: For easy carrying and protect pumps well during shipping.
Hydraulic Pump Model CP-700 70Mpa High Pressure Hydraulic Hand Pump Manual/Hand Pump
|
Item number |
16164C | 16164 | 16164A | 16164B |
|
Model |
CP-180 | CP-700 | CP-700A | CFP-800B |
|
Type |
hand | hand | hand | foot pump |
|
Max output pressure |
/ | low pressure 2Mpa | low pressure 2Mpa | low pressure 2Mpa |
| high pressure 70MPa | high pressure 70Mpa | high pressure 70Mpa | high pressure 70Mpa | |
|
Output of the oil |
/ | low pressure 13cc | low pressure 13cc | low pressure 13cc |
| high pressure 1.8cc |
high pressure 2.3cc |
high pressure 2.3cc | high pressure 2.3cc | |
|
Oil capacity |
350cc | 900cc | 2700cc | 600cc |
|
Direction of piston |
single | double | double | double |
|
(KG) Weight |
approx.N.W9.5KG G.W10.9KG |
approx.N.W9.5KG G.W10.9KG |
approx.N.W14.1KG G.W15.5KG |
approx.N.W9.8KG G.W10.8KG |
|
(LxWxH) Measurement |
340×60×120mm | 700x100x160mm | 700x100x200mm | 520x160x170mm |
|
Package |
paper box | paper box | paper box | paper box |
