Usage: |
Optical Fiber Site |
Material: |
ABS,fibergalss |
Length: |
30~500m/roll |
Feature: |
Abrasion-Resistant |
Name: |
Wire Pulling Duct Rod |
Surface Treatment: |
Coating |

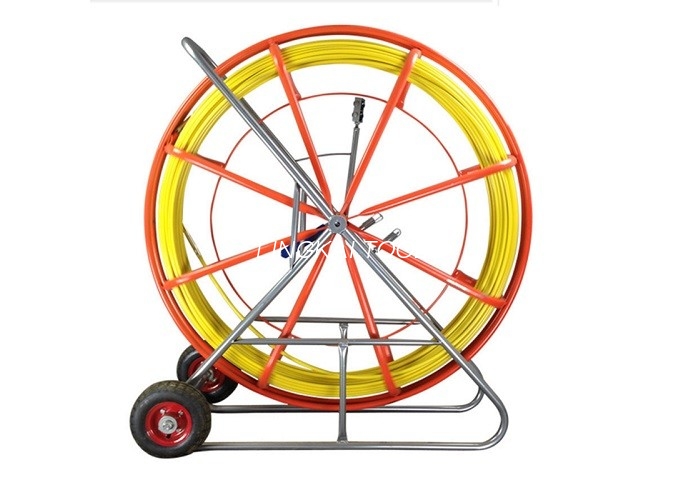

300M and ABS Cable Pulling Tools Smooth Duct Rods For Fiber Optic Site
Why Choose our Fiberglass Duct Rodders,Conduit Rodders,Electric Rodders,Fiberglass Snakes?
Fiberglass duct rodder is one of Lingshen most popular products,we have been exported many such fiberglass products every year.With the competitive price,excellent quality,quick delivery,as well as the heart and soul service,we enjoyed high reputation home and aboard.
May I know more about Sanchuang Fiberglass Duct Rodder?
1)Rods Material:Fiberglass and ABS
2)Normal Sizes(Custmized is always available and welcome)
Diameter:4.0mm,4.5mm,5.0mm,6.0mm,7.0mm,8.0mm,9.0mm,10.0mm,11.0mm,12.0mm,13.0mm,14.0mm,15.0mm,16.0mm.
Length: from 50m to 500m per roll,C ustmized is always available and welcome.
3)Mounted Accessories: Dusting or painting Frames,PVC Wheels,Metal Tips and Connectors
Typical Features of Sanchuang Fiberglass Duct Rodders
300M and ABS Cable Pulling Tools Smooth Duct Rods For Fiber Optic Site
1) high strength and high fastness;
2) durable in use;
3) anti-corrosion and rust;
4) beautiful smoothy suface;
5) flexible when assemble;
6) customizing in sizes,color,ect;
Duct Push Rodder
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16, |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Character | Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion | |
| Packing | Inside | plastic woven strip wind around the frame |
| Outside | Wooden pallet and Wooden box |
Fiberglass Pull Push Rod
Our Service:
| 1 | Well trained sales team service for you. |
| 2 | Small MOQ, usually sample is available. |
| 3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
| 4 | Top quality: we have professional QC team to control the quality. |
| 5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
| 6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
| 7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
