Description:
|
Cable Cutters
|
Type Of Cutter:
|
Ratchet Or Hydraulic
|
|
Application:
|
Underground Cable Installation
|
Diameter Of Cable:
|
Up To 185 Mm
|
| Item number | Model | Cutting Range |
| 21442B | CC325 | Cutting Off Copper Or Aluminum Cable below240 mm2 |
| 21442A | J40B | Cutting Off Copper Or Aluminum Cable below240 mm2 |
| 21442C | J40A | Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm. |
| 21442D | J40C | Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm. |
| 21445C | J40D | Cutting Copper Or Aluminum cable below300 mm2. Maximum opening is 40 mm. |
| 21445 | J40 | Cutting Copper Or Aluminum armored cable below300 mm2. Maximum opening is 40 mm. |
| 21445A | J52 | Cutting Copper Or Aluminum armored cable below 500mm2. Maximum opening is 52 mm. |
| 21445B | J75 |
Cutting Copper and Aluminum armored cables diameter below Φ 75mm |
| 21441 | J95 |
Cutting Copper and Aluminum armored cables diameter below Φ 95m |
| 21441A | J100 |
Cutting Copper and Aluminum armored cables diameter below Φ 100m |
| 21440 | J130 |
Cutting Copper and Aluminum armored cables diameter below Φ 130mm |
| 21440A | J160 |
Cutting Copper and Aluminum armored cables diameter below Φ 160mm |

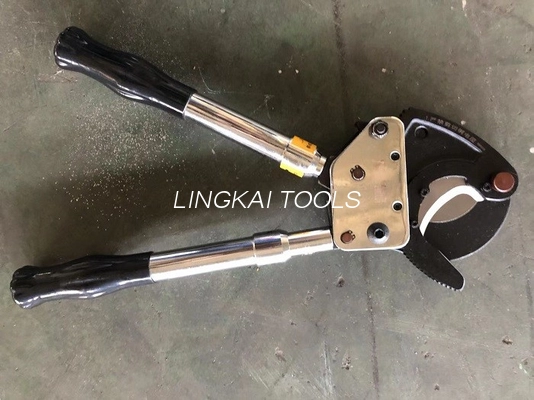

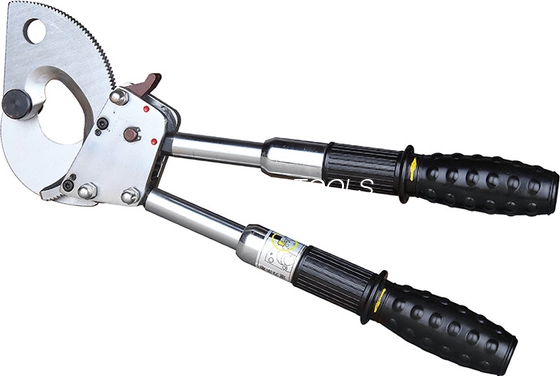

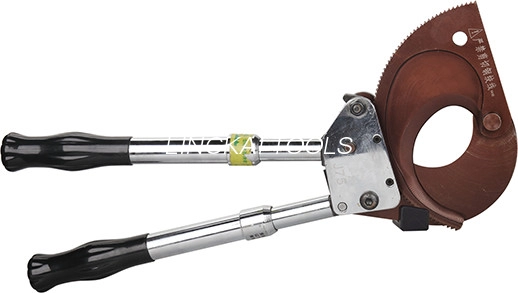

Hand Easy Operation Armoured Ratchet Cutting Tools Manual Wire Cutter Electric Cable Cutter
1. Cutting the copper aluminum armoured cable
2. It could be operated by one hand only due to light weight;
3. The cable cutter has convenient operation, is labor saving and safe and can not damage cable wires and human bodies.
Feature
1. Cutting the steel wire rope;
2. It could be operated by one hand only due to light weight;
| Item number | Model | Cutting Range |
| 16247 | J30 |
Cutting ACSR with section below 630mm . Cutting steel strand with section below 100 mm. |
| 16246 | J13 |
Cutting ACSR with section below 720mm . Cutting steel strand with section below 150 mm. |
| 16245 | J25 |
Cutting ACSR with section below 800mm . Cutting steel strand with section below 150 mm. |
| 16248 | J50 |
Cutting ACSR with section below 1440mm . Cutting steel strand with section below 180 mm. |
| 16237 | J14 | Cutting steel rope section diameter below Φ20 mm |
| 16238 | J25A |
Cutting steel rope section diameter below Φ30 mm
|
| 16239 | J33 | Cutting steel rope section diameter below Φ33 mm |
