Name: |
Bridge Roller |
Warranty: |
1 Year |
Application: |
Cable Construction |
Suitable Cable: |
<=150mm |
Material: |
Aluminum Alloy |
Rated Load: |
10KN |

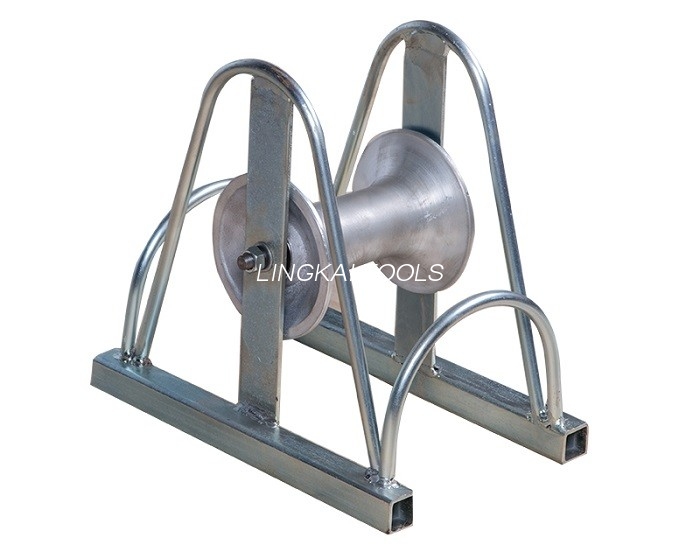

Aluminium Alloy Stringing Pulley Bridge Type Straight Line Cable Roller
Cable rollers and cable pulling equipment for the SL, cable laying contractor and electricity supply industry - this includes straight cable rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches and ducts up to 33kV.
Cable rollers should always be used when pulling cables.
Cable laying applications with bends in the route require skid plates of a radius greater than the cables minimum dynamic bending radius.
The ground cable rollers and corner cable rollers from LS are made of aluminium, steel or nylon. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.
Features: light weight; strong bearing; reducing friction; long life
Application
|
Item
|
Straight line cable roller
|
|
Length
|
330mm
|
|
Width
|
230mm
|
|
Height
|
330mm
|
|
Material
|
Nylon or Alumium wheel
|
|
Packing
|
Carton box or as your request
|
