NAME:
|
Steel Turnbuckle
|
Model:
|
SJS
|
||||
|
Rated Load:
|
10kn
|
Weight:
|
10kg
|
Apply:
|
Tightening Conductor
|
Feature:
|
Light Weight
|

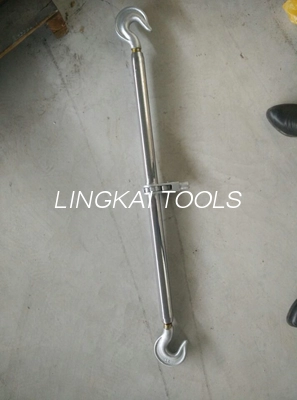

SJS Model Steel Double Hook Turnbuckle Dual - Hook Aluminum Alloy Turnbuckle
Our steel double hook turnbuckle plays a role in tightening the steel wire rope, stranded steel wire, and some others. This product from 14113 to 14116 can be also provided with the ring structure, which must be clearly indicated in the contract.
Detailed Data
| Item number | Model | Rated load (kN) | Maximum center distance | Adjustable distance (mm) | Weight (kg) | Remark |
| 14111 | SJS-0.5 | 5 | 800 | 300 | 2.5 | Steel |
| 14112 | SJS-1 | 10 | 860 | 250 | 3.5 | |
| 14113 | SJS-2 | 20 | 1050 | 340 | 4 | |
| 14114 | SJS-3 | 30 | 1350 | 470 | 6 | |
| 14115 | SJS-5 | 50 | 1440 | 510 | 8 | |
| 14116 | SJS-8 | 80 | 1670 | 560 | 8.5 | |
| 14117 | SJS-10 | 100 | 1740 | 600 | 10 | |
| 14121 | SJSL-1 | 10 | 768 | 290 | 2 | Aluminum Alloy |
| 14122 | SJSL-2 | 20 | 936 | 350 | 2.5 | |
| 14123 | SJSL-3 | 30 | 1296 | 530 | 4.5 | |
| 14124 | SJSL-5 | 50 | 1500 | 630 | 6 |
Sleeve Type Double Hook Turnbuckle
Description
| Item Number | Model | Rated Load (kN) | Max. Distance Between Centers (mm) | Adjustable Distance (mm) | Weight (kg) |
| 14151 | SJST-1 | 10 | 658 | 290 | 3 |
| 14152 | SJST-2 | 20 | 865 | 370 | 3.2 |
| 14153 | SJST-3 | 30 | 970 | 430 | 4.5 |
| 14154 | SJST-5 | 50 | 1127 | 520 | 7.2 |
