Usage: |
Pilot Rope Or Pulling Rope |
Numbers Of Strands: |
Inner 16 Outside 32 |
Description: |
Anti Twisting Braided Nylon Rope |
Construction Of Strands: |
Double Layer Braided |
Other Material: |
Optional |
Material Of Rope: |
High Strength Polyamide Fiber |
The Nylon rope is double layer braided by imported Germany Braiding machine. The rope is used for pulling operation or stringing operation in transmisson line construction.The outer side layer is braided from 32 strands polyamide fiber, the inner layer is braided from 16 strands polyamide fiber

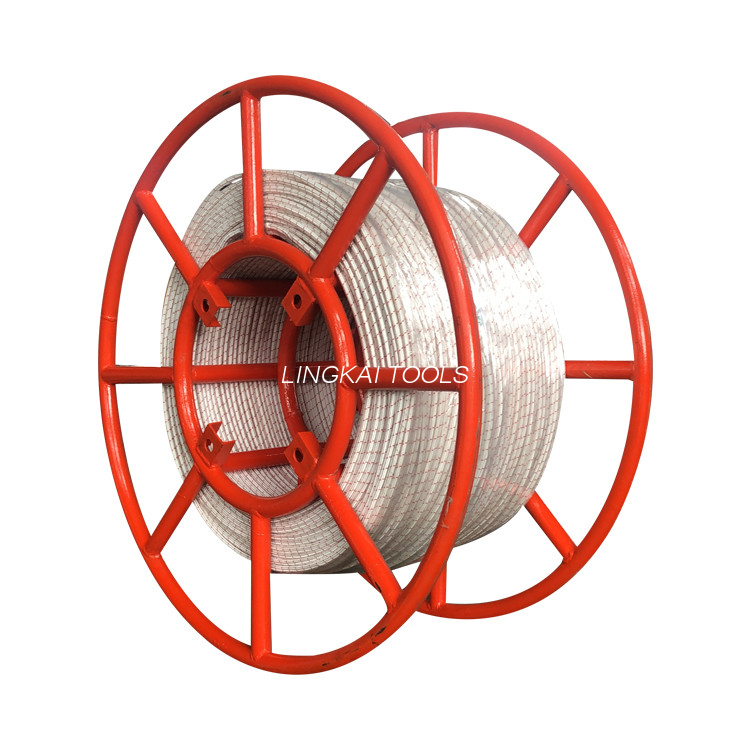

Anti Twist Braided Nylon Rope
| Item No. | Nominal diameter | Breaking Load (KN) | Elongation with 30% Breaking load | Net Weight (kg/1000m) | |
| 6381A | 6 MM | 7.5 | 7.5% | 28 | |
| 6382A | 8 MM | 12 | 7.5% | 44 | |
| 6383A | 10 MM | 20 | 7.5% | 64 | |
| 6384A | 12 MM | 30 | 7.5% | 92 | |
| 6385A | 14 MM | 42 | 7.5% | 116 | |
| 6386A | 16 MM | 50 | 7.5% | 160 | |
| 6387A | 18 MM | 64 | 7.5% | 194 | |
| 6388A | 20 MM | 75 | 7.5% | 222 | |
The nylon rope is specially braided from double layer high strength polyamide fiber, anti twisting and light weight. It is used as pilot rope or pulling rope in overhead transmission line stringing operation, it also can be used for hot line working.
The rope is double layer braided with spliced eye on both ends. The rope also can be colored in different colors for hot line working.
