Name: |
Hydraulic Puncher |
Using: |
Punching |
Model: |
CH-70 |
Punching Force: |
35T |
Apply: |
Metal Hole Punching |
Weight: |
34.5kg |

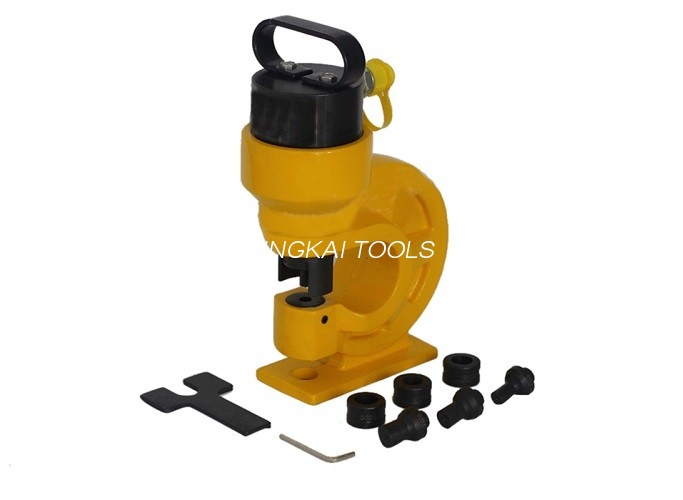

CH70 35T Hydraulic Bus Bar Hole Punching Tool For Metal Hole Punching
Tools Feature:
CH70 35T Hydraulic Bus Bar Hole Punching Tool For Metal Hole Punching
1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range.
2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application
3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm
4. Punching Dies Customization is Available if samples and Drawings can be provided
5. Steel Case Package: Protect Tools well
Tools Specification:
CH70 35T Hydraulic Bus Bar Hole Punching Tool For Metal Hole Punching
35Ton Output busbar machine hydraulic hole puncher
1. Application: Punch Round Holes on Cu/Al Busbar
2. Punching Capacity: Dia. 10.5mm-Dia. 20.5mm
3. Busbar Thickness: Below or equivalent to 12mm
4. Output: 35T
5. Throat Depth: 110mm
6. Weight: 28kg
7. Size: 370*240*150mm
8. Package: Steel Case
Date Sheet:CH70 35T Hydraulic Bus Bar Hole Punching Tool For Metal Hole Punching
Hydraulic Punch Machine for Punching Hole On Metal Sheet
Model:CH 60
| Apeture (mm) | 10.5mm ,13.8mm,17.5mm,20.5mm |
| Output ( T ) | 31T |
| Iron sheet | 6mm |
| Copper busbar | 10mm |
| Throat Depth | 95mm |
| Weight | 19-50kg |
Modle:CH 70
| Punching force | 35T |
| Max thickness of sheet | 12mm of copper sheet/ 6 mm of metal sheet |
| Depth of throat | 110mm |
| Height | approx.460mm |
| Weight | approx.34.5kg. |
| Package | carton |
| Size | 390X250X140mm |
| Accessories | 3/8"(10.5),1/2"(13.8),5/8"(17),3/4"(20.5)mm |
| Note | it is used for Cu/Al plate, can match pumps CP-700/ DYB-63A. |
Model:CH 80
| Punching Force | 50T |
| Max thickness of sheet | 16mm of coppet sheet/14mm of metal sheet |
| Depth of throat | 115mm |
| Weight | approx.30kg |
| Package | wooden case |
| Size | 400*260*160mm |
| Accessories | 16/18/22/25mmmm |
| Note |
It is used for punching Cu/Al plate, can match pumps CP-700D or electric pump. |
