Model: |
CO-630B |
Crimping Force: |
30T |
Crimping Range: |
150-630mm2 |
Name: |
Hydaaulic Cable Crimping Tools |
Head: |
Hexagon |
Stroke: |
24mm |

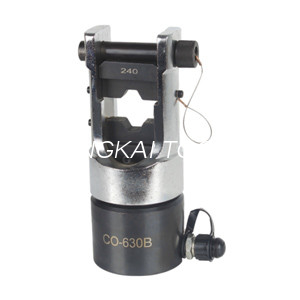

CO-630B hydraulic cable crimping tools, motorized hydralulic compressor, hydraulic crimping head
1. Donghuan Brand
2. Crimping force 30T
3. Crimping range 150-630mm2
4. Die can accordingly made
5. Hydraulic crimping head for Hexagon
6. Work wiht 70Mpa Hydraulic pump
Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2
Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2
|
Item number |
16101 | 16101A | 16101B | 16101C |
|
Model |
CO-630B | CO-630A | CO-1000 | CO-400 |
|
Crimping force |
300KN | 350KN | 550KN | 200KN |
|
Crimping range |
150-630mm² | 150-630mm² | 400-1000mm² | 16-400mm² |
| Crimping
type |
hexagon crimping |
hexagon crimping |
hexagon crimping |
hexagon crimping |
|
Dies |
150,185,240,300, 400,500,630mm² |
150,185,240,300, 400,500,630mm² |
400,500,630, 800,1000mm² |
16,25,35,50, 70,95,120,150, 185,240,300,400mm² |
|
Stroke |
24mm | 24mm | 26mm | 24mm |
|
Heigth |
approx.275mm | approx.350mm | approx.400mm | approx.250mm |
|
(KG) Weight |
approx.N.W11.5KG G.W20KG |
approx.N.W16.7KG G.W25.5KG |
approx.N.W32KG G.W39KG |
approx.N.W5.4KG G.W10KG |
|
Package |
wooden case | wooden case | wooden case | paper box |
Crimping Form Hexagon Hydraulic Compressor CO-630 30T Crimping Range 150-630mm2
Working with a manual hydraulic pump or an electric hydraulic pump(70MPa)
