Name: |
Hydraulic Puncher |
Model: |
CH70 |
Punching Force: |
350KN |
Throat Diameter: |
110mm |
Apply: |
Punching Iron And Copper |
Moulds: |
Customized |

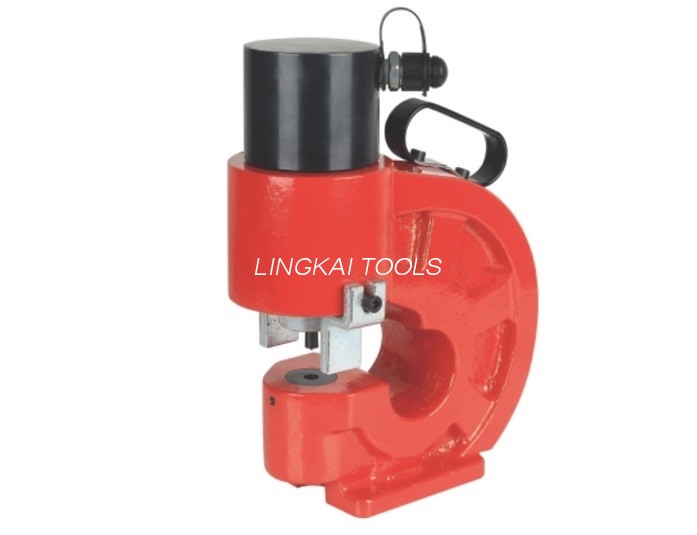

CH-70 Hydraulic Hole Puncher Hydraulic Punching Tools with Punching Force 350KN
Features
Operation speed of CH-70 Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.
With pressing mechanism design, punching precision is good.
With the hydraulic pump as power, it can used in no power site.
1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range
2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application
3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm
4. Punching Dies Customization is Available if samples and Drawings can be provided
5. Steel Case Package: Protect Tools well
Output 35 Ton CH-70 Hydraulic Puncher Hole Punching Tool Hydarulic Tool
Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-70
|
Item number |
Model |
(KN) Punching force |
(MM) Punching thickness |
(MM) throat diameter |
(MM) Hight |
(KG) Weight |
(MM) specification of matching mold |
hydraulic pump |
| 06243 | CH-60 |
300 |
iron6 copper10 |
95 | 350 | 19 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06244 | CH-70 | 350 |
iron10 copper12 |
110 | 360 | 35 |
Φ10.5,Φ13.8, Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06248 | CH-80 |
500 |
iron16 copper20 |
115 | 340 | 45 |
Φ16,Φ18, Φ22,Φ25 |
ZCB6-5-AB |
| 06249 | CH-100 | 1000 |
iron18 copper20 |
135 | 400 | 150 |
Φ25,Φ28, Φ32,Φ36 |
ZCB6-5-AB |
