Item: |
09171 |
Model: |
12-A |
Ground Clearance: |
150mm |
Wheel Base: |
1040mm |
Power: |
15HP |
Speed: |
2000RPM |

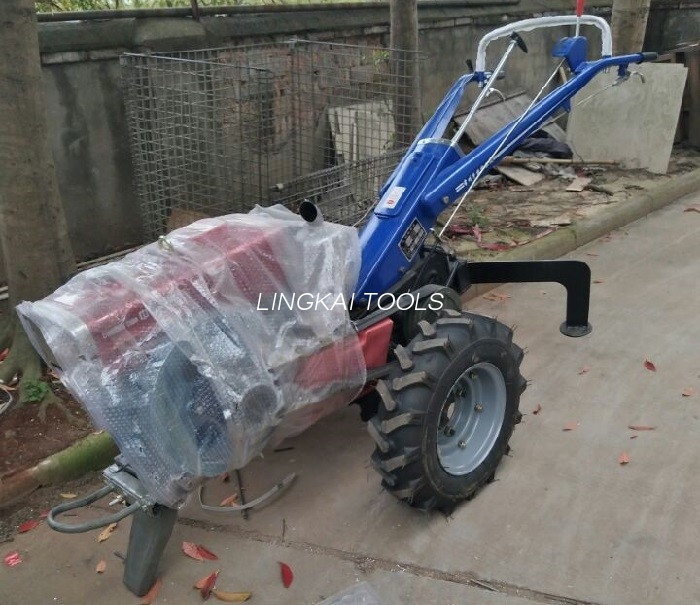

Easy Operate 5 Ton Diesel Engine Driven Walking Tractor Winch for Cable Pulling
Walking Tractor Winch
| Item number | Model |
(MM) Ground Clearance |
(MM) wheel-base |
(HP) Power |
(RPM) speed |
(KM/H) Travel speed |
(MM) Outline size |
(KG) Weight |
| 09171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 550 |
| 09172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 600 |
| Gear | 鈪?/td> | 鈪?/td> | 鈪?/td> | 鈪?/td> | reversal鈪?/td> | reversal鈪?/td> |
|
(T) Traction force |
60 | 37 | 20 | 12 | / | / |
|
(M/MN) Traction speed |
11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
5 Ton Diesel Tractor Cable Puller Winch Walking Tractor Winch
Configuration:
Restructured from the model 12 hand tractor,simple structure, easy operation widely used for pylon-conductor setting in power line construction .
Application
5 Ton Diesel Tractor Cable Puller Winch Walking Tractor Winch is used for stringing wire in electrical power line construction, crane lifting.
