Model:
|
SJM-5SQ
|
Name:
|
Cable Pulling Winch
|
||||
|
Type:
|
Double Capstan
|
Rated Road:
|
5T
|
Engine:
|
Honda GX390
|
Stage:
|
4
|

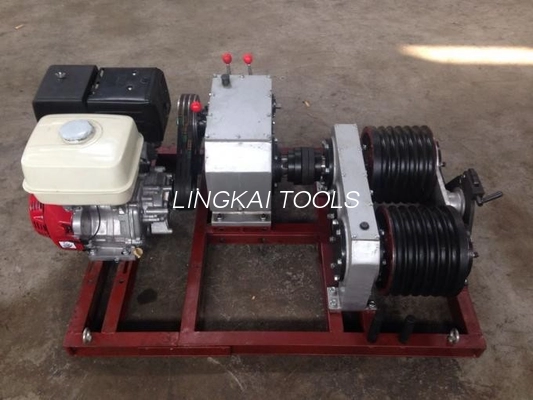

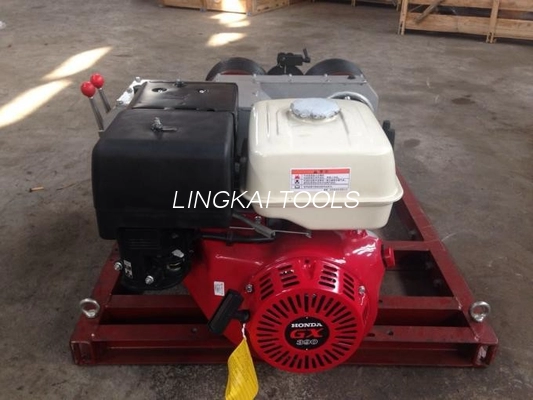

5 Ton Double Capstan Cable Pulling Winch With Honda GX390 Engine 13HP
INTENDED USE
Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Characteristics
5 Ton double capstan winch is a traction hoisting operation carried out in the filed of construction site,mainly used in electric power,telecommunications line tower,stood in the receiving ,put on the line,the laying of cable ,hauling or lifting.
Technical Data
| Model number | SJM-5SQ | ||||||
| Engine | HONDA GX390/186F Diesel Engine | ||||||
| Power | 13HP,3600rpm/6.3KW,3600rpm | ||||||
| Capstan | 6 nos of groove,230mm bottom diameter | ||||||
| Weight(kg) | 280 | ||||||
| Dimension(mm) | 1300*670*600 | ||||||
| Gear | Forward | Reverse | |||||
| Slow I | Slow II | Quick I | Quick II | Slow | Quick | ||
| Rated Pulling(KN) | 50 | 30 | 13 | 10 | - | - | |
| Pulling Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 | |
| It is 4 stages. | |||||||
| Reduction Ratio:60:1 | |||||||
