Low Pressure:
|
2mpa
|
High Pressure:
|
2.3cc
|
||||
|
Type:
|
Hydraulic Pump
|
Low Pressure:
|
13cc
|
Direction Of Piston:
|
Double
|
Material:
|
Steel
|

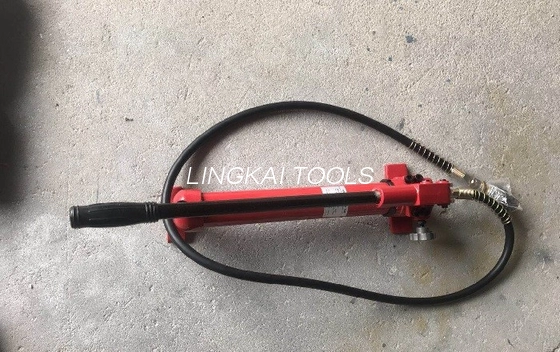

CP-700 High Pressure Manual Hydraulic Pump with Hydraulic Cylinder 1000psi
Hand operated style: No electric power is needed.
Quick Coupler: For fast connection with compatible tools.
Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke),
and then bulid sufficient working pressure under losd condition (20-700Bar)
Safty Valve: For safe operation. Automatically relief pressure when rated pressure is reached,
protect hydraulic system from overpressure
Steel Case Package: For easy carrying and protect pumps well during shipping.

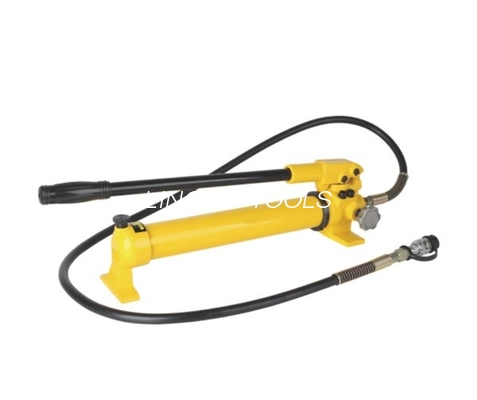

Hydraulic Pump Model CP-700 70Mpa High Pressure Hydraulic Hand Pump Manual/Hand Pump
|
Item number |
16164C | 16164 | 16164A | 16164B |
|
Model |
CP-180 | CP-700 | CP-700A | CFP-800B |
|
Type |
hand | hand | hand | foot pump |
|
Max output pressure |
/ | low pressure 2Mpa | low pressure 2Mpa | low pressure 2Mpa |
| high pressure 70MPa | high pressure 70Mpa | high pressure 70Mpa | high pressure 70Mpa | |
|
Output of the oil |
/ | low pressure 13cc | low pressure 13cc | low pressure 13cc |
| high pressure 1.8cc |
high pressure 2.3cc |
high pressure 2.3cc | high pressure 2.3cc | |
|
Oil capacity |
350cc | 900cc | 2700cc | 600cc |
|
Direction of piston |
single | double | double | double |
|
(KG) Weight |
approx.N.W9.5KG G.W10.9KG |
approx.N.W9.5KG G.W10.9KG |
approx.N.W14.1KG G.W15.5KG |
approx.N.W9.8KG G.W10.8KG |
|
(LxWxH) Measurement |
340×60×120mm | 700x100x160mm | 700x100x200mm | 520x160x170mm |
|
Package |
paper box | paper box | paper box |
paper box |
Application: Supply pressurized oil to compatible tools
Single-Acting Hand Operated
Rated Pressure: 700Bar (10000psi)
Oil Reservoir: 900CC
Working Pressure: Low Pressure 0-20Bar High Pressure: 20-700Bar
Oil Delivery Speed: Low Pressure 12.26cc/stroke High Pressure 2.26cc/stroke.
