Model: |
HT300 |
Name: |
Cable Piler |
Type: |
Crimping Tools |
Form: |
Hexgon Hydraulic |
Out Put: |
6T |
Weight: |
3.3kg |

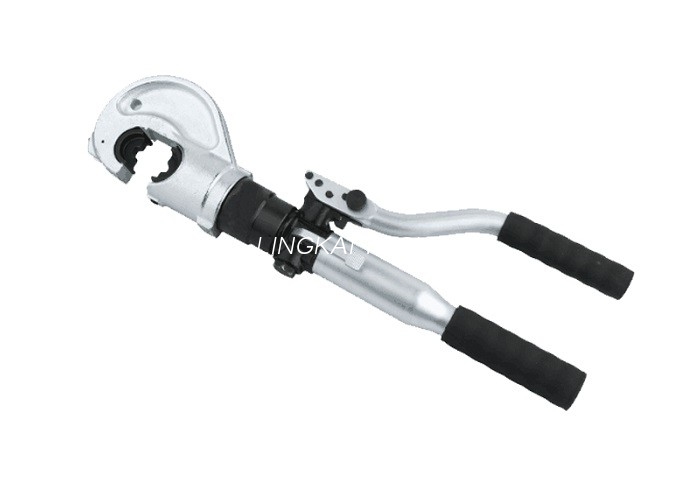

HT-300 Manual Hydraulic Crimping Plier,Hexagon Hydraulic Cable Crimper
Quick Information HT-300 Manual Hydraulic Crimping Plier,Hexagon Hydraulic Cable Crimper
Open the working clamp head, 350 ° free rotation
Two-stage hydraulic system to improve work efficiency and more effort
Built-in safety valve to prevent overpressure
Press the manual release button
Press release halfway, quick reset
Novel head design
Flip head
Light, 350 ° free rotation
High-strength aluminum alloy body
More compact, more light
Non-slip handle
Technical Parameters
Crimping range: 16-300mm
Maximum pressure: 60KN = 6 TON CRIMP FORCE
Maximum travel: 17mm
Crimping form: Hexagonal crimp
Accessories:
Mold configuration: 16,25,35,50,70,95,120,150,185,240,300 mm2
| Specification |
|
1. The tool has a double speed action: a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for crimping. 2. For easy and comfort operation, the tool head can rotate 180 degress. 3. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression 4. With interchangeable dies and safety system inside. |
Model: HT-300 hydraulic crimping tool
HT-300 Manual Hydraulic Crimping Plier,Hexagon Hydraulic Cable Crimper
| Crimping range | 16-300mm2 |
| Crimping force | 60KN |
| Crimping type | hexagon crimping |
| Stroke | 17mm |
| Length | 460mm |
| Weight | 3.3kg |
| Package | aluminum alloy code case |
| Accessories | 16,25,35,50,70,95,120,150,185,240,300mm2 |
1. The tool has a double speed action: a fast advancing speed for rapid approach of the blades to the
connector and a slower more powerful speed for crimping.
2. For easy and comfort operation, the tool head can rotate 180 degress.
3. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the
pressure release system can easily be operated at any stage of compression
4. With interchangeable dies and safety system inside.
