Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block
  • Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch BlockDouble Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block
  • Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch BlockDouble Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block

Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block

High quality Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block from China, China's leading tower climbing equipment product, with strict quality control tower climbing kit factories, producing high quality tower climbing kit products.

Name:
Lifting Hoist
Feature:
Three Wheels
Type:
Hook Type
Material:
Iron Steel
Apply:
Line Erection
Rated Load:
30kN

Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block



Application

Tower Erection Tools Three Wheels Steel Hoisting Tackle For Erect Line

It is used for lifting and sagging operation in transmission line construction. It is used for pole and tower erection, line construction, equipment hoisting and other lifting applications.The sheave is made of high strength qualified steel, the sheave is mounted on ball bearings. The frame of pulley blocks is galvanized. All the blocks have been tested before ex-works.The single sheave pulley block can be designed as side open type and side closed type.

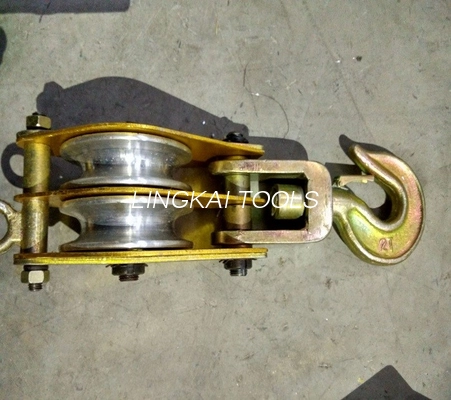

Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block 1

Iron Lifting Tackle Specification.

Item Number Model Number of Sheave Rated Load (kN) Sheave
Outer Diameter × Sheave Width (mm)
Rope Diameter (mm) Weight (kg) Hoisting Point Type
11181 QH1-1K 1 10 Φ100×31 Φ7.7 2.8 G H
11182 QH1-2 2 10 Φ80×28 Φ6 2.8 G H
11183 QH1-3 3 10 Φ80×27 Φ6 4.1 G H
11191 QH2-1K 1 20 Φ120×35 Φ9.3 4.2 G H B
11192 QH2-2 2 20 Φ100×31 Φ7.7 4.2 G H
11193 QH2-3 3 20 Φ100×31 Φ7.7 6 G H
11201 QH3-1K 1 30 Φ150×39 Φ11 7 G H B
11202 QH3-2 2 30 Φ120×35 Φ9.3 5.3 G H
11203 QH3-3 3 30 Φ100×31 Φ7.7 6.5 G H
11211 QH5-1K 1 50 Φ166×40 Φ13 9.6 G H B
11212 QH5-2 2 50 Φ150×39 Φ11 10.8 G H
11213 QH5-3 3 50 Φ120×35 Φ9.3 7.7 G H
11221 QH8-1K 1 80 Φ205×50 Φ17 12.5 G H B
11222 QH8-2 2 80 Φ166×40 Φ13 17 G H
11223 QH8-3 3 80 Φ150×39 Φ11 17.5 G H
11231 QH10-1K 1 100 Φ246×60 Φ18.5 25 G   B
11232 QH10-2 2 100 Φ166×40 Φ13 18.5   H
11233 QH10-3 3 100 Φ150×39 Φ11 20   H
11241 QH15-1K 1 150 Φ280×65 Φ21.5 34     B
11242 QH15-2 2 150 Φ205×50 Φ17 22   H
11243 QH15-3 3 150 Φ166×40 Φ13 26   H
11244 QH15-4 4 150 Φ150×39 Φ11 30   H
11248 QH20-4 4 200 Φ205×50 Φ17 50   H

Note: Please specify the fitting styles (hook, eye, clevis) when ordering.

Pls nicely check the related block photos...

Double Wheel Tower Erection Tools Aluminium Alloy Side Panel Snatch Block 2
