Model: |
DSJ-150 |
Name: |
Cable Push Pulling Machine |
Site: |
Underground Operation |
Weight: |
180 Kg |
Force: |
900 Kg |
Using: |
Conveying Cable |

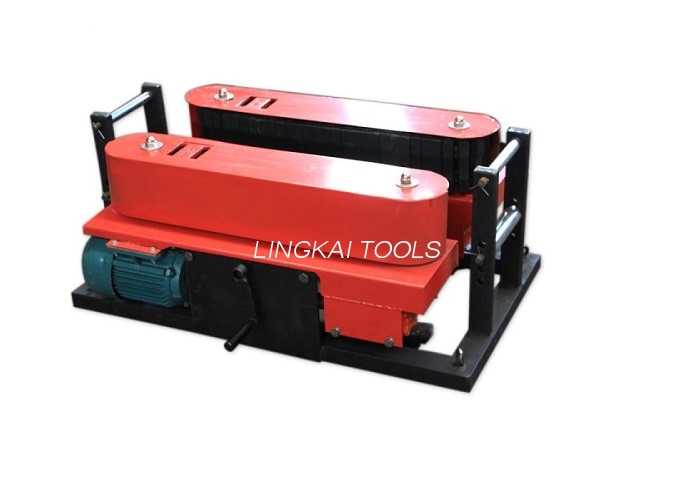

DSJ Electrical Engine Crawler Type Cable Converyer Cable Push Pulling Machine
Electrical Crawler Type Cable Converyer Cable Push Pulling Machine Technical Data
| Model Type | DSJ-150 | DSJ-180 |
| Line pulling(KGS) | 700 | 900 |
| Pulling Speed(m/min) | 8 | 6 |
| Electric motor | 1.1KW *2 | 1.5KW * 2 |
| Oversize dimension | 950*500*400 | 1020*590*400 |
| Weight(KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transimission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
Crawler Cable Conveyor Introduction
DSJ series product is an electric machine for laying power cables (or communication cables).Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions, reduce labor intensity, improve work efficiency and ensure the safety.
Cable Converyor Features:
This machine has very low mechnical noise, eay maintenance, The transmission force is ransmitted through the compound caterpillar, and cater pillar adopts high strength wear-resisting rubber, which make the power force uniform and durable.The machine is equipped with adjustable roller, which is very convenient.The upper part of the machine can be fitted with a hinge wheel, which can be used for small power traction.The two vertical shafts drive the transmission force and gravity respectively in two directions of the cable to protect the insulation of the cable.
How about the delivery date?
A.: Within 15 days after deposit received. Urgent order or small order will be handled case by case.
What are your Payment terms?
A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
Cable Hauling Machine With 900KG Cable Pulling Force Application
Petroleum, Chemical, Industrial construction
Power Plant Extension
Long Way Laying of Cable Line
Conveying Power Cable
Other Channel, Cable Pipe
Substation and City Network Transmission Cable
