MODEL: |
QHJ |
TYPE: |
HOISTING TACKLE |
NAME: |
INSULATED TACKLE |
RATED LOAD: |
1,2,3T |
WEIGHT: |
1.8KG |
MAX DIA: |
8MM ROPE |

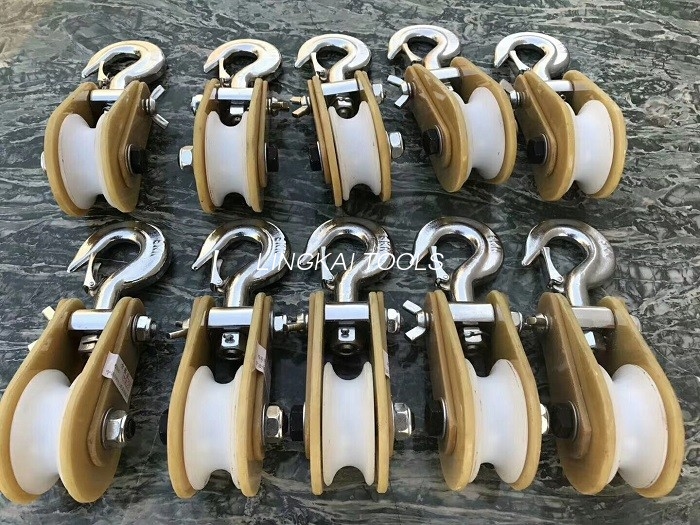

Insulated Hoisting Tackle Epoxy Resin Plate With Nylon Wheel Tower Tools
Insulated Hoisting Tackle Epoxy Resin Plate With Nylon Wheel Tower To
|
Item number |
Model |
Number of sheaves |
Rated load (kN) |
(mm) MAX. Rope Diameter |
Weight (kg) |
| 11401 | QHJ1x1 | 1 | 10 | Φ8 | 1.8 |
| 11402 | QHJ1x2 | 2 | Φ6 | 1.8 | |
| 11403 | QHJ1x3 | 3 | Φ6 | 2.1 | |
| 11411 | QHJ2x1 | 1 | 20 | Φ10 | 2.9 |
| 11412 | QHJ2x2 | 2 | Φ8 | 3.1 | |
| 11413 | QHJ2x3 | 3 | Φ8 | 3.8 | |
| 11421 | QHJ3x1 | 1 | 30 | Φ11 | 4.1 |
| 11422 | QHJ3x2 | 2 | Φ10 | 4.3 | |
| 11423 | QHJ3x3 | 3 | Φ8 | 5.3 | |
| 11424 | QHJ3x4 | 4 | Φ8 | 6.3 | |
| 11431 | QHJ5x1 | 1 | 50 | Φ13 | 5.6 |
| 11432 | QHJ5x2 | 2 | Φ11 | 6.1 | |
| 11433 | QHJ5x3 | 3 | Φ10 | 7.3 | |
| 11434 | QHJ5x4 | 4 | Φ10 | 8.3 | |
| 11441 | QHJx1 | 1 | 5 | Φ8 | 1.3 |
| 11442 | QHJx2 | 2 | Φ6 | 1.3 | |
| 11443 | QHJx3 | 3 | Φ6 | 1.8 |
Configuration:
User:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Features:Product is made of Epoxy resin plate with MC nylon wheel,it has light weight.
Specification:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
