Name:
|
Fixed Joints
|
Model:
|
SLU
|
|
Material:
|
High Strength Alloy Steel
|
Application:
|
Power Line Stringing Operation
|
Fixed Joints (Pilot wire rope connecto) in power line stringing operation.

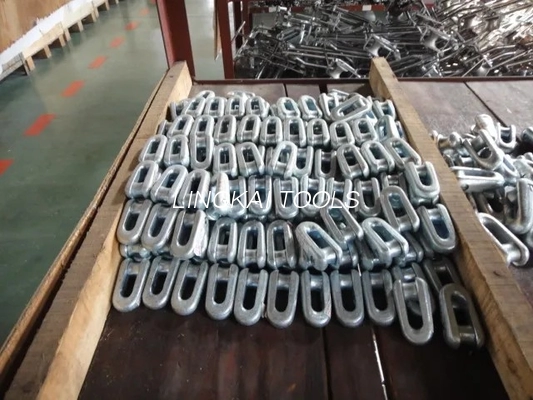

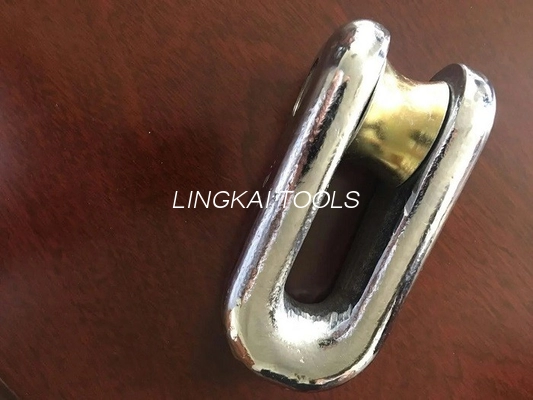

“U” Shape Pilot Wire Connectors
| Item No. | Model | Dimension of Connector (mm) | Rated Load (KN) | Weight (kg) | ||||
| A | B | C | D | E | ||||
| 17111 | SLU-1 | 36 | 68 | 18 | 14 | 24 | 10 | 0.2 |
| 17112 | SLU-3 | 37 | 76 | 20 | 17 | 28 | 30 | 0.2 |
| 17113 | SLU-5 | 50 | 98 | 23 | 19 | 43 | 50 | 0.6 |
| 17114 | SLU-8 | 58 | 120 | 28 | 25 | 52 | 80 | 1.1 |
| 17115 | SLU-10 | 59 | 126 | 30 | 26 | 54 | 100 | 1.2 |
| 17116 | SLU-13 | 61 | 134 | 32 | 27 | 56 | 130 | 1.2 |
| 17117 | SLU-15 | 63 | 138 | 37 | 28 | 58 | 150 | 1.4 |
| 17118 | SLU-25 | 80 | 178 | 44 | 35 | 72 | 250 | 3.0 |
| 17118A | SLU-28 | 80 | 178 | 44 | 35 | 72 | 280 | 3.0 |
| 17119 | SLU-32 | 85 | 186 | 42 | 38 | 80 | 320 | 3.9 |
Application: It is used to connect anti twisting steel wire rope during transmission line stringing operation.
It is forged from high strength alloy steel, the axle of connector is protected with sleeve.
The fixed joints are suitable to connect anti twisting braided steelrope to pass through the bull wheels of hydraulic puller tensioner.
he special designed profile minimises the overload on the rope spliced eyes during the passage.
