Model:
|
St48-4
|
Rated Load:
|
4x12 Kn
|
||||
|
Hook Slot Length:
|
120mm
|
Weight:
|
35kg
|
Apply:
|
Four Bundle
|
Use:
|
For Lifting Wire
|
Four Bundled Conductor Lifter For Lifting, Four Bundle Conductor Lifting Tools
| Order number | 19101 | 19102 | 19103 | 19104 |
| Model | ST8 | ST12 | ST25 | ST40 |
| Rated load (kN) | 8 | 12 | 25 | 40 |
| Bracket length (mm) | 60 | 120 | 200 | 260 |
| Weight (kg) | 0.9 | 2.5 | 7 | 10.5 |

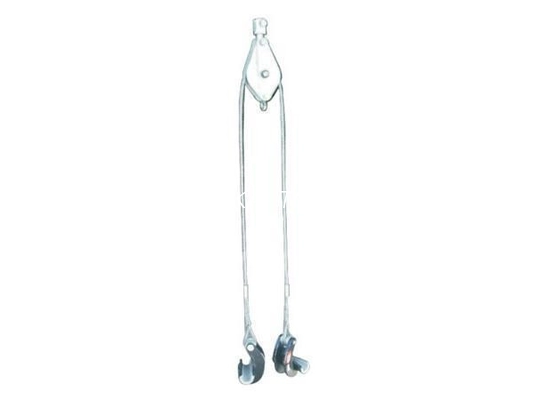

Two bundled conductor lifter
| Order number | 19112 | 19113 | 19114 |
| Model | ST25R | ST50R | ST80R |
| Rated load (kN) | 2×12 | 2×25 | 2×40 |
| Bracket length (mm) | 120 | 200 | 260 |
| Weight (kg) | 13 | 26 | 40 |
| Order number | 19111 |
| Rated load (kN) | 2×12.5 |
| Bracket length (mm) | 120 |
| Conductor seperation distance (mm) | 400450 |
| Weight (kg) | 5 |

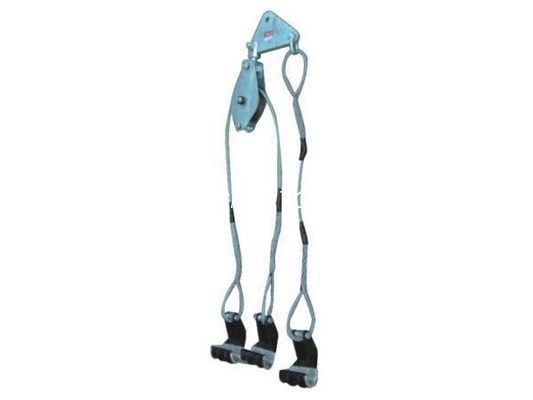

| Order number | 19108 |
| Rated load (kN) | 3×12 |
| Weight (kg) | 21 |
| Order number | 19115 | 19116 | 19117 |
| Model | ST50S | ST100S | ST160S |
| Rated load (kN) | 4×12 | 4×25 | 4×40 |
| Bracket length (mm) | 120 | 200 | 260 |
| Weight (kg) | 35 | 67 |
97 |
Earth wire lifter
| Order number | Model | Rated load (kN) | The safety factor | Weight (kg) | Note |
| 19121 | STD-1 | 10 | 3 | 3.2 | For pylon |
| 19122 | STD-2 | 3 | 3 | 4 | For pole |
