Model: |
SHDHZ10 |
Curvature Radius (mm): |
R570 |
Weight: |
23.5kg |
Rated Load: |
10KN |
Size(mm): |
760脳120脳480 |
Item: |
Stringing Cable Block |
Optical Fiber Cable String Equipment Four Wheels Quadrant Cable Block
Our quadrant cable block is utilized to string the fiber optic cable with its diameter of less than 22mm. It is designed with four-wheel composite structure, featuring light weight and large radius of curvature.
Main Specifications
| Item number | 20141 |
| Model | SHZHD10 |
| Curvature radius (mm) | R570 |
| Dimensions(mm) | 760×120×480 |
| Rated load (kN) | 10 |
| Weight (kg) | 23.5 |

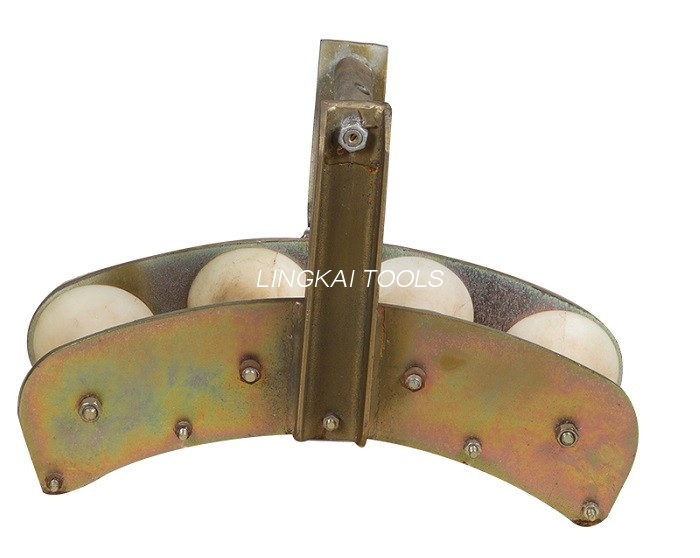

Combined Type Fiber Optical (OPGW) Quadrant Pulley
Combined Type Fiber Optical (OPGW) Quadrant Pulley are specially designed for stringing OPGW cables on transmission line.The root of sheave is specially designed and manufactured.
The sheave can be made of high strength nylon
·Use: For stringing optical fiber cables of Φ22 mm or below.
·Features: Four wheels structure; large curvature radius; low weight.
Optical Fiber cable stringing equipment Quadrant Cable Block
1) dimension:760x120x80mm
2) curvature radiusmm: R570
3) rated load 10KN
4) stringing less than 22mm diameter optic cable
