Model: |
YBDA-80-02 |
Max Pressure: |
94mpa |
Rated Pressure: |
80mpa |
Packing: |
Wooden Case |
Type: |
Super High Pressure |
Feature: |
Single-stage Pump Output |

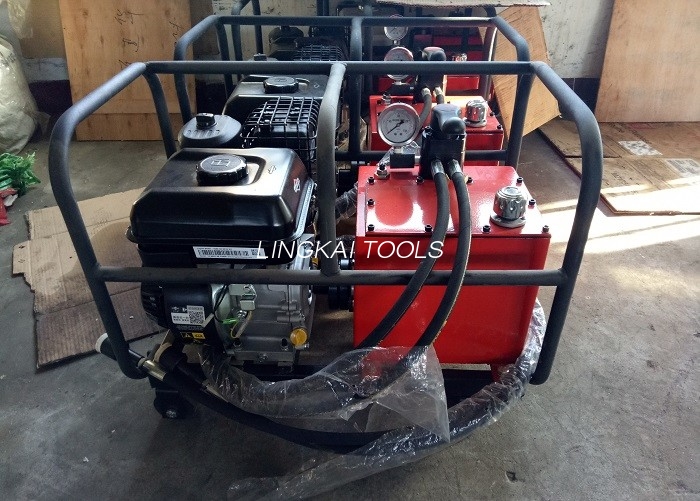

Gasoline Engine Driven Hydraulic Pump with Super High Pressure for Crimping tools
Gasoline engine hydraulic unit, fuel hydraulic piston pump, honda fuel pump.
1. Gasoline engine HONDA GX160 power
2. We have can make YAMAHA driven per your demands.
3. Donghuan Brand
4. This Hydraulic pump station is work with hydraulic pressure machine with Hexagon head
5. So please when you order it ,tell us which tons hydralic crimping tools
6. All are tools are passed the 3rd parties testing and through ISO
Super high pressure hydraulic pump(Single-stage pump output)
|
Item number |
Model |
Engine Type |
Power |
(Mpa) Rated Pressure |
(Mpa)
Max Oil Pressure |
(L/min) Rated Flow |
)KG) Weight |
|
|
Hig |
Low |
|||||||
| 16146 | YBQA-80-02 |
Gasoline engine |
5.0HP | 80 | 94 | 1.6 | / | 55 |
| 16147 | YBCA-80-02 |
Diesel engine |
4.0HP | 80 | 94 | 1.6 | / | 65 |
| 16144 | YBDA-80-02 |
Electric engine |
1.5KW | 80 | 94 | 1.6 | / | 45 |
