Model: |
GXK |
Load: |
1-30T |
Name: |
Tackle |
Selling Point: |
High Strength |
Material: |
Steel |
Dimension: |
Standard |

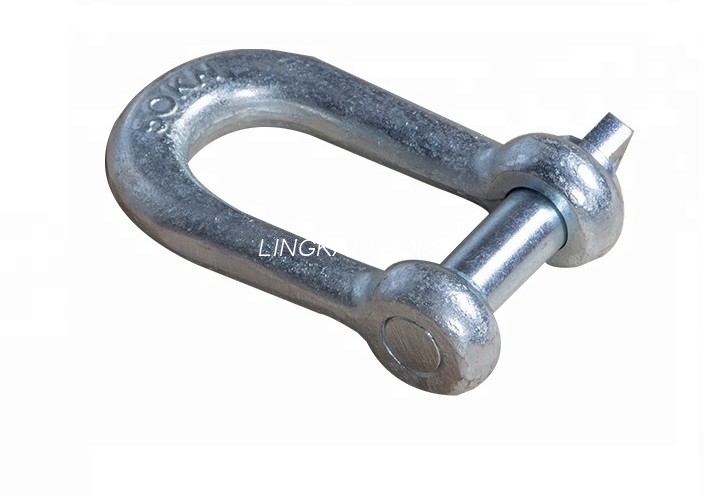

GXK High Strength Tackle Forged Alloy Screw Pin Shackle For Lifting
Specifications:GXK High Strength Tackle Forged Alloy Screw Pin Shackle For Lifting
1. made of top-quality steel and with heat treatment
2. small and can go through various pulley
3. safety,simple
High Strength Tackle Technical Data:GXK High Strength Tackle Forged Alloy Screw Pin Shackle For Lifting
| Item Number | Model | Main Dimension (mm) | Rated Load (kN) | Weight(kg) | |||
| A | B | C | D | ||||
| 17131 | GXK-1 | 55 | 42 | 12 | 20 | 10 | 0.15 |
| 17132 | GXK-2 | 67 | 58 | 16 | 24 | 20 | 0.29 |
| 17133 | GXK-3 | 97 | 82 | 20 | 34 | 30 | 0.8 |
| 17133A | GXK-3A | 97 | 112 | 20 | 34 | 30 | 0.9 |
| 17134 | GXK-5 | 107 | 89 | 22 | 38 | 50 | 1.12 |
| 17134A | GXK-5A | 107 | 131 | 22 | 38 | 50 | 1.29 |
| 17135 | GXK-8 | 128 | 97 | 30 | 45 | 80 | 2.4 |
| 17136 | GXK-10 | 141 | 114 | 34 | 48 | 100 | 3.56 |
| 17137 | GXK-16 | 152.5 | 139 | 37 | 54 | 160 | 4.8 |
| 17138 | GXK-20 | 164 | 140 | 39 | 60 | 200 | 5.17 |
| 17139 | GXK-30 | 186 | 146 | 50 | 68 | 300 | 7.5 |
High Strength U Type Shackle For Anchor Chain
In the construction for supporting or traction steel rope connection and other tools.
Features:GXK High Strength Tackle Forged Alloy Screw Pin Shackle For Lifting
1. Material: carbon steel
2. Competitive price
3. Treatment: drop forged
4. Fast delivery time
Quality Control:
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values:
1: Take First-Class Quality as Target and First-class Service.
2: As Responsibility, To Succeed By Scientific Management.
3: Customer in Heart, Quality in Hand, Technology in the Lead.
Packing and delivery:
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
