Model: |
EP430 |
Crimping Force: |
120KN |
Crimping Range: |
16-400mm2 |
Crimping Type: |
Hex |
Name: |
Manul Crimping Tools |
Sroke: |
32mm |

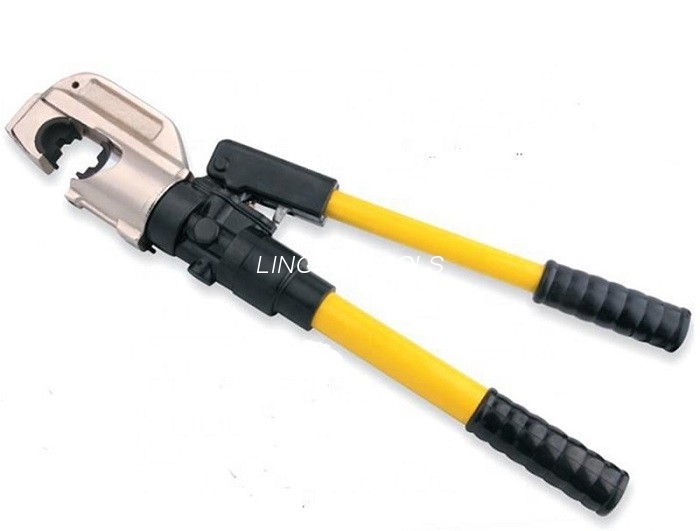

Model EP-430 Handheld / Manual Hydraulic Press Crimping Tool with 16-400 mm2 Crimping Range
Integral Hydraulic Crimping Pliers
|
Item number |
16199 | 16200 |
|
Model |
EP-430 | EP-510 |
|
Crimping force |
120KN | 130KN |
|
Crimping range |
16-400mm² | 16-400mm² |
| Crimping
type |
hexagon crimping |
hexagon crimping |
|
Dies |
50,70,95,120,150, 185,240,400mm² |
50,70,95,120,150, 185,240,400mm² |
|
Stroke |
32mm | 38mm |
|
(CC) Oil capacity |
145cc | 200cc |
|
Length |
approx.770mm | approx.780mm |
|
(KG) Weight |
approx.N.W7.1KG G.W10.7KG |
approx.N.W7.4KG G.W11KG |
|
Package |
plastic box | plastic box |
Hydraulic Pex Crimping Tool Cable Lug Crimping Tool :
1.Compression mould can be replaced, quick and safe operation;
2.Compression configuration: 50,70,95,120,150,185,240,300,400mm2
Press tools is suitable for DIN.AWG.JIS.
There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
Only one person can work.
Pump is connected to the tools, it can turn 180 degree when pressed on the head
