Name: |
Anti Twist Braid Rope |
Strands: |
12,18 |
Type: |
Steel Rope |
Advantage: |
Galvanized Teatment |
Feature: |
Breaking Load High |
Dia: |
10 Mm |

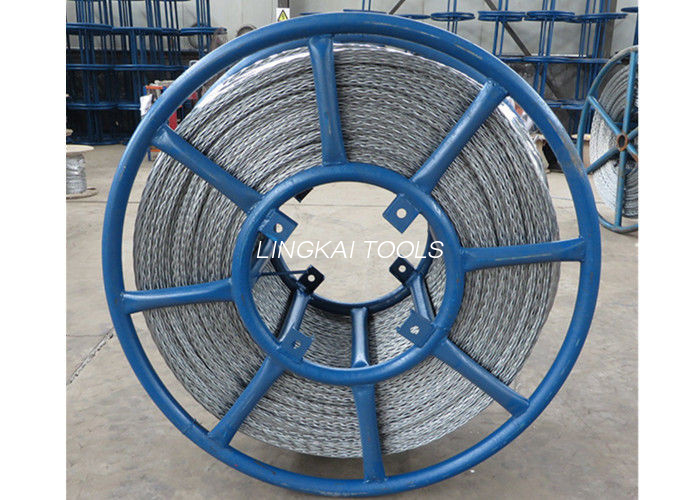

Hexagon Anti Twisted Pilot Rope Galvanised Steel Wire Rope With 12 Strands
Quick details:Hexagon Anti Twisted Pilot Rope Galvanised Steel Wire Rope With 12 Strands
1. Transmission Line Stringing Accessories
2. Anti twist Galvanized Steel Wire Rope 6 Squares 12 Strands
3. Normal Diameter: 20mm
4. Breakage load: 250kN
5. Size available: 9~30mm
6. Length: 1000m
7. Reel diameter: 1400mm
Anti Twist Braid Rope Data Sheet Technical Data
We adopt high quality steel rope to braide anti-twisting steel rope.It is used for pulling the conductor in the overhead transmission line.
| Model | Structure |
Nominal Dia (mm) |
Single bundle Dia (mm) |
Ref Weight (kg/100m) |
Breaking Force(KN) |
Standard Length (m) |
| HL9-12×19W | Hexagon with 12 strands | 9 | 2.0 | 26.69 | 55.0 | 1000 |
| HL11-12×19W | Hexagon with 12 strands | 11 | 2.5 | 45.73 | 80.5 | 1000 |
| HL13-12×19W | Hexagon with 12 strands | 13 | 3.0 | 57.96 | 120.0 | 1000 |
| HL16-12×19W | Hexagon with 12 strands | 16 | 3.5 | 82.80 | 158.0 | 1000 |
| HL18-12×19W | Hexagon with 12 strands | 18 | 4.0 | 103.82 | 210.0 | 1000 |
| HL20-12×T25Fi | Hexagon with 12 strands | 20 | 4.5 | 129.62 | 250.0 | 800 |
| HL22-12×T25Fi | Hexagon with 12 strands | 22 | 4.8 | 147.88 | 320.0 | 800 |
| HL24-12×T25Fi | Hexagon with 12 strands | 24 | 5.0-5.2 | 160.23 | 360.0 | 800 |
| HL26-12×T25Fi | Hexagon with 12 strands | 26 | 5.5-5.6 | 193.71 | 420.0 | 700 |
| HL28-12×T29Fi | Hexagon with 12 strands | 28 | 6.0 | 230.50 | 480.0 | 500 |
| HL30-12×T29Fi | Hexagon with 12 strands | 30 | 6.5 | 272.04 | 540.0 | 500 |
| HL20-18×19W | Hexagon with 18 strands | 20 | 4.0 | 159.80 | 300.0 | 800 |
| HL22-18×T25Fi | Hexagon with 18 strands | 22 | 4.2 | 189.80 | 389.0 | 800 |
| HL24-18×T25Fi | Hexagon with 18 strands | 24 | 4.8 | 216.20 | 440.0 | 800 |
| HL26-18×T25Fi | Hexagon with 18 strands | 26 | 5.2 | 276.80 | 480.0 | 700 |
| HL28-18×T29Fi | Hexagon with 18 strands | 28 | 5.4 | 301.20 | 580.0 | 500 |
| HL30-18×T29Fi | Hexagon with 18 strands | 30 | 5.6 | 361.60 | 658.0 | 500 |
| HL32-18×T29Fi | Hexagon with 18 strands | 32 | 6.0 | 423.00 | 780.0 | 500 |
Application
Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope is applied to mechanical pulling and tensioning release conductors.
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
FAQ:
1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
Our Service:
| 1 | Well trained sales team service for you. |
| 2 | Small MOQ, usually sample is available. |
| 3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
| 4 | Top quality: we have professional QC team to control the quality. |
| 5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
| 6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
| 7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
