Model:
|
EP510
|
Crimping Type:
|
Hexagon Crimping
|
||||
|
Stroke:
|
38mm
|
Crimping Range:
|
16-400mm2
|
Name:
|
Hydraulic Hand Crimper
|
Weight:
|
7.4g
|
Hexagon Hydraulic Terminal Crimping, Hydraulic Hand Crimper, Hydraulic Cable lug Crimping Tool

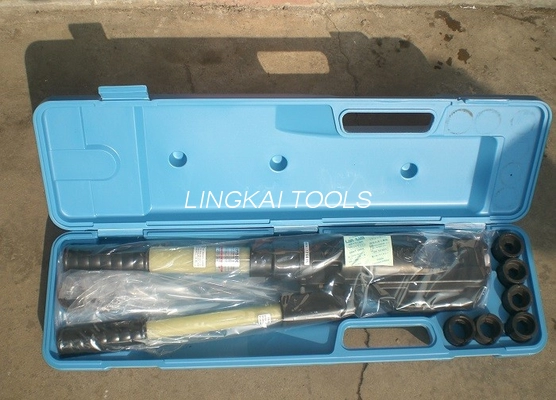

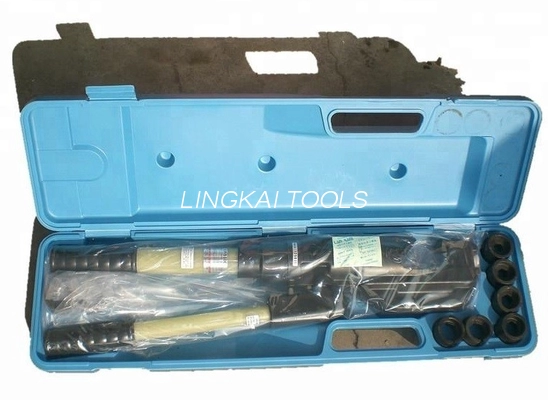

Hydraulic Cable Lug Crimping Tools Model EP-510 For Crimping Terminal 50-400sqmm
|
Item number |
16199 | 16200 |
|
Model |
EP-430 | EP-510 |
|
Crimping force |
120KN | 130KN |
|
Crimping range |
16-400mm² | 16-400mm² |
|
Crimping
type |
hexagon crimping |
hexagon crimping |
|
Dies |
50,70,95,120,150, 185,240,400mm² |
50,70,95,120,150, 185,240,400mm² |
|
Stroke |
32mm | 38mm |
|
(CC) Oil capacity |
145cc | 200cc |
|
Length |
approx.770mm | approx.780mm |
|
(KG) Weight |
approx.N.W7.1KG G.W10.7KG |
approx.N.W7.4KG G.W11KG |
|
Package |
plastic box | plastic box |
1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .
2. Open cut design for convenient operation.
3. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.
4. The head could be rotated 180° freely for narrow space working.
5. Fitted with safety valve, when pressure reaches to limited max. Value pressure release automatically to prevent over pressure.
6. Standard die assembling 50,70,95,120,150,185,240,300,400mm².
7. Fiberglass insulated handles to prevent accidental electrichitting.
8.Packing case is made form robust integarl plastic box.
