Name: |
Gas Powered Winch |
Feature: |
High Efficient |
Pulling Force: |
5 Ton |
Engine: |
Honda |
Apply: |
Wire Rope Pulling Winch |
Site: |
Power Construction |

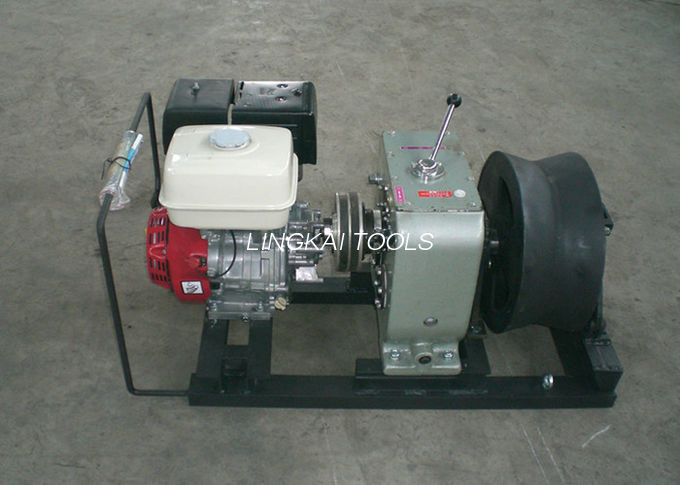

High Efficiency 5 Ton HONDA Wire Rope Gas Powered Winch in Power Construciton
Application
High Efficiency 5 Ton Gas Powerd Winch is mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive,the braking action.
Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Features
1) Speedy and Efficient
2) Safe and Reliable
3) Compact structure
4) Widely used
5) Light weight
Technical Data
| Model | Specification | Gear | Line Pull | Pulling Speed | |
| KN | m/min | ||||
| JJM-5B(Q) | Overall Size:1200*600*750mm | Forward | I | 50 | 5 |
| II | 30 | 9 | |||
| Weight:180kg | III | 15 | 14 | ||
| IV | 9 | 24 | |||
| Transmission:Shaft Driven | Reverse | I | - | 5 | |
| II | - | 9 | |||
| Engine:HONDA gasoline engine GX360 13HP | III | - | 14 | ||
| IV | - | 24 | |||
