Model: |
HT-400 |
Crimping Force: |
120KN |
Crimping Range: |
16-400mm2 |
Crimping Type: |
Hexa |
Stroke: |
32mm |
Length: |
552mm |

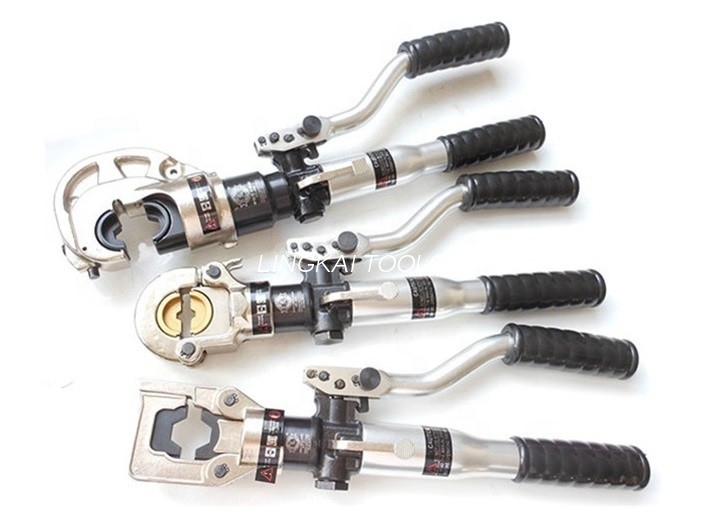

HT-400 Integral Hydraulic Crimping Pliers Cable Lug Crimping Tools for 16-400 mm2 Crimping
Hydraulic Crimping Tools Type Copper Tube Crimper Tool
|
Item number |
16210 | 16210A |
|
Model |
HT-300 | HT-400 |
|
Crimping force |
60KN | 120KN |
|
Crimping range |
16-300mm² | 16-400mm² |
| Crimping
type |
hexagon crimping |
hexagon crimping |
|
Dies |
50 16,25,35,50,70,95,120, 150,185,240,300mm² |
50,70,95,120,150, 185,240,300,400mm² |
|
Stroke |
17mm | 32mm |
|
Length |
approx.460mm | approx.552mm |
|
(KG) Weight |
approx.N.W3.7KG G.W7.1KG |
approx.N.W6.8KG G.W10.2KG |
|
Package |
aluminum alloy box | aluminum alloy box |
Hydraulic hand crimper / cable lug crimping tools/ wire crimper
Characteristics
1. Compression mould can be replaced, quick and safe operation;
2. Compression configuration: 50,70,95,120,150,185,240,300,400mm2
3. Press tools is suitable for DIN.AWG.JIS.
4. There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
5. It can be operated by one person,it saves time and labor.
6. Pump is connected to the tools, it can turn 180 degree when pressed on the head.
