Name:
|
Reel Payout Stand
|
Load:
|
10~50 KN
|
||||
|
Weight:
|
22~35 Kg
|
Feature:
|
3 Types
|
Model:
|
SIL
|
Warranty:
|
One Year
|
Underground Cable Tools SIL 1- 5ton Mechanical Simple Reel Payout Stand
Simple Reel Payout Stand

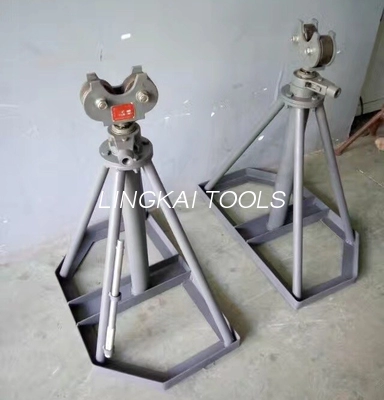

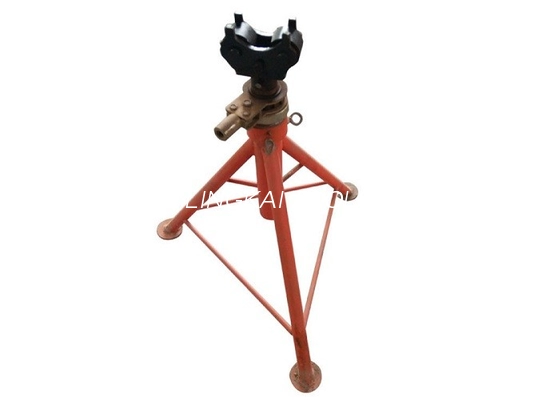

Underground Cable Tools SIL 1- 5ton Mechanical Simple Reel Payout Stand:it rated load can mx reach 5T, and adjustable range of hight from 450mm to 1300mm, we have three types of this simple reel payout stand, they are pillar style, frame style, and pillar base frame style.
| Item number | Model | Rated load (kN) | Range of adjustable height (mm) | Weight (kg) | Feature |
| 15191 | SIL-1 | 10 | 450-650 | 22 | Pillar style |
| 15192 | SIL-3 | 30 | 600-900 | 24 | |
| 15193 | SIL-5 | 50 | 900-1300 | 27 | |
| 15201 | SIK-3 | 30 | 400-1000 | 30 | Frame style |
| 15202 | SIK-5 | 50 | 710-1270 | 44 | |
| 15211 | SIL-3A | 30 | 620-1000 | 28 | Pillar base-Frame style |
| 15212 | SIL-5A | 50 | 900-1300 | 35 |
Packing Information
Application:
Hydraulic Lifting Underground Cable Tools Mechanical Simple Reel Payout Stand:
Used for put cable plate and expand lead wire,earthwire and cable etc.It has1Ton to 5Ton, can we can paint the color per your requirements, this reel stands are throught the strictly weight carrying testing, made of best quality steel to hold on the capacity of drum.
Use and Characteristics:
Wire Reel Stands/Cable Drum Jack /Cable Reel Stand are applicable to the placement of the cable tray,hydraulic lifting,carrying the weight of a large.The bottom with small wheel,easy to move,can be equipped with a braking device,using the foot brake.
About the cable reel stands, conductor reel stands, besides this mechincal payout stands, we also make the hydraulic type, and integrated reel stands, the larger one is to support reel in tension releasing wire or mechnically pull wire and to brake the reel. They are connect working with hydraulic puller and tensioner in the power construciton site, it is very easy to operate and transport.
Other Underground Cable Tools:
